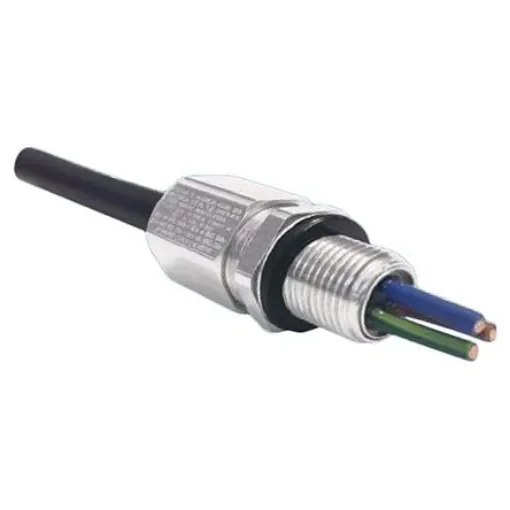

Moflash A2EX-QS Series Metallic Stainless Steel Cable Gland, M20 Thread, 11mm min., 15mm max., IP66, IP68 - 50213

Thread Size = M20
Maximum Cable Diameter = 15mm
Minimum Cable Diameter = 11mm
Material = Stainless Steel
Colour = Metallic
Series = A2EX-QS
IP Rating = IP66, IP68
Locknut Included = No
Hazardous Area Certification = ATEX
Maximum Operating Temperature = +95°C

ATEX, IECEx, INMETRO, SANS/IEC. The QuickStop-Ex liquid resin must be purchased separately, stock no. ; 901-0655 901-0655 (the nozzles are supplied with the barrier glands). A2EX-QS Barrier Compression Gland for Explosive Atmospheres. The A2EX-QS Barrier Compression Gland is designed for use with unarmoured cable in hazardous areas with a potentially explosive atmosphere. Equipment protection levels: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex tb IIIC Db II 2G, II 2D, II 3G. Features and benefits. For indoor, outdoor and Group II hazardous areas with unfilled hygroscopic multicore cable Instantly mixed and injected resin Resin forms a 100% barrier seal around the individual cores of the cable Prevents gas and moisture transmitting down the cable Prevents explosive gases transmitting down the cable Precision manufactured from high quality brass (marine grade electroless nickel plated) or stainless steel Complete with sealing gasket IP66 / IP68 protection
