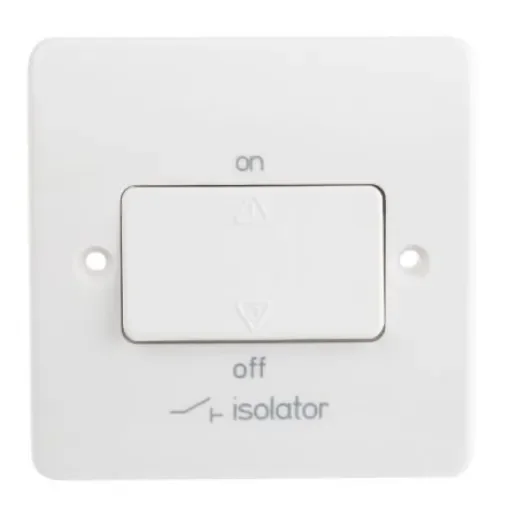

MK Electric White Logic Plus Fan Isolator Switch - K4857WHI

MK Electric Logic Plus White Moulded Triple Pole Fan Isolator SwitchThe MK Electric Logic Plus white moulded triple pole fan isolator switch, with 10A Switchlock and Padlock, provides a simple and safe method of isolating mechanical fan units. It is used when there is little or no natural light available.Features and Benefits:• Stored energy is the method of operation • Suitable for ionisation • AC23B utilisation category • Electric rating of 250VAC and 10A at 50Hz • The switch has a terminal capacity of 4 x 1mm², 4 x 1.5mm², 3 x 2.5mm², 2 x 4mm² and 1 x 6mm² • The nominal contact gap is 3mm • 100A rms rated making capacity • 80A rms rated breaking capacity • 6000A rms rated conditional short-circuit current • (with supply side protective device GEC NIT 16 BS88: part 2: 1988 16A 550VAC utilisation category gG 80KA breaking capacity fuse links) • Operating temperature range between -5°C to +40°C • 2000m maximum installation altitude • Number of poles 3 •Termination type screwApplications:• Bathrooms • Storerooms • BasementsCertifications:• IP4X rated
