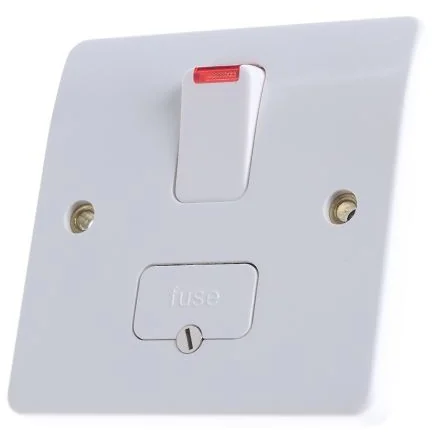

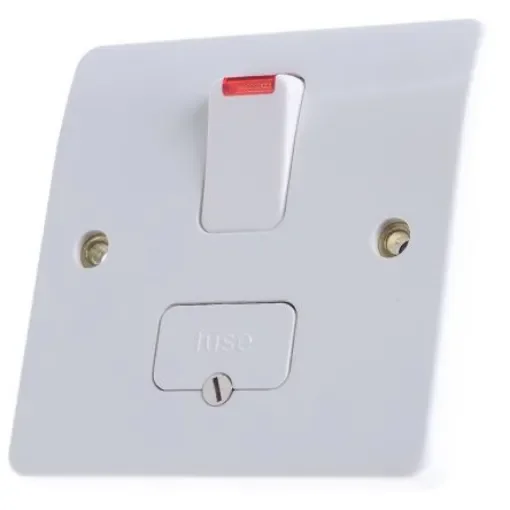

MK Electric 13A 1 Gang Switched Fused Spur - K1060 WHI

Switched = Yes
Number of Gangs = 1
Current Rating = 13A
RCD Type = None
Fuse Type = BS 1362
Number of Poles = 2
Length = 86mm
Depth = 12.5mm
Width = 86mm
Height = 86mm

BS1363 (Part 4: 1995). Bottom flex outlet types are supplied with a blanking plug for when a flex outlet is not required. 20. 13A Flush Mounting Connection Units. A range of 13A fused connection units designed for the connection of refrigerators, water heaters, central heating boilers and other fixed appliances. The ranges are designed for ease of installation and have the clever design features of the Logic Plus range. Fused connection units 13 A, 240 V Conform to BS 1363: Part 4 : 1995 Stylish modern profile Neon indicators in the switch rockers with 175° visibility in the horizontal and vertical planes Fuse carrier lockable in open position All supply and load cables can be cut and stripped to same length Integrally wired indicators save installation time Push-fit cord grips, for safer, quicker installation Angled, top mounted terminal screws simplify wiring Moulded 'on' indicator flash on switches cannot rub off - totally safe Captive fuse carrier Additional electrical safety from neutral make first", "break last" feature Secure cable and flexible cord connection All terminal and fixing screws operated by one size (4mm) screwdriver Backed out and captive terminal screws Flush mounting back box : min. 35 mm deep Nominal plate dimensions : 86 x 86 mm Logic Plus products are made from a high grade thermoset material which has an inherent antimicrobial property
