Key Features:
- Advanced GPS Trolling System: Equipped with i-Pilot Link and Bluetooth, offering precise navigation and control.
- Spot-Lock with Jog: Holds your position with GPS accuracy; the Jog feature allows you to move your Spot-Lock location five feet in any direction.
- Drift Mode: Automatically controls speed and course to maintain your desired drift, even in heavy wind and current.
- Digital Maximizer: Provides up to five times longer run time on a single battery charge by delivering only as much power as needed.
- Indestructible Composite Shaft: Guaranteed for life, ensuring durability and longevity.
- Advanced Corrosion Protection: Lower unit housings are grit-blasted, coated in aluminum, and finished with powder coat paint to prevent oxidation and rust.
- One-Boat Network Compatibility: Connects seamlessly with select Humminbird fish finders for integrated control.
Technical Specifications:

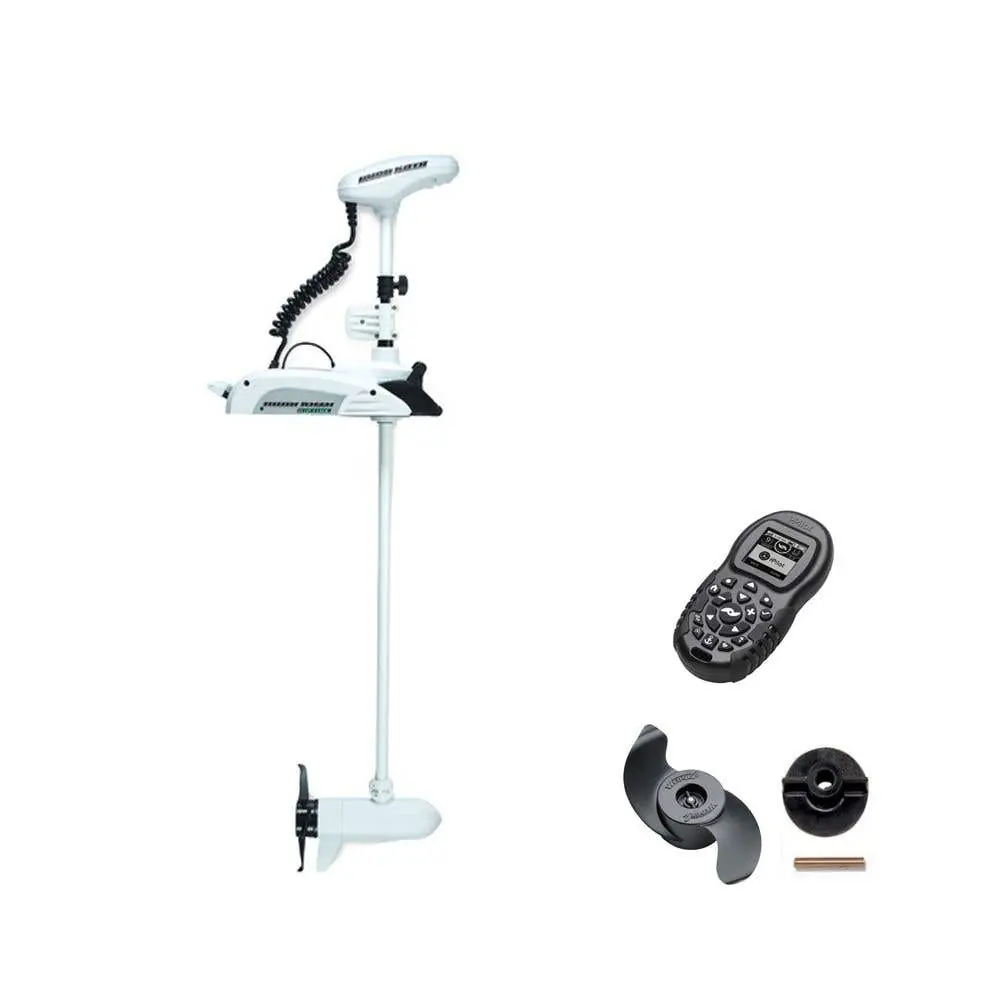

- Motor Type: Electric, bow mount
- Voltage: 24 V
- Thrust: 80 lbs
- Shaft Length: 72 inches (183 cm)
- Weight: 58.65 lbs (26.6 kg)
- Dimensions:
- Length: 72.25 inches (183.52 cm)
- Height: 9 inches (22.86 cm)
- Width: 15.63 inches (39.7 cm)
- Maximum Boat Weight: Up to 1,800 kg
- Control Options: Handheld remote, foot pedal (optional)
- Mounting Requirements: Requires drilling 4-6 bolts into the hull for installation; mounting dimensions are 13.94" length x 8.52" width.
Materials:
- Shaft: Indestructible composite material
- Lower Unit Housing: Grit-blasted, aluminum-coated, and powder-coated for corrosion resistance
- Propeller: Weedless Wedge II propeller designed to navigate through dense vegetation
Compatibility Information:
- Battery Requirements: 24V system; compatible with two 12V marine batteries wired in series or one 24V LiFePO4 lithium battery (minimum 50Ah rating).
- Mounting Compatibility: Compatible with Minn Kota RTA-17 Quick Release Bracket for 54" and 60" shaft lengths; for the 72" model, the RTA-62 Quick Release Bracket is recommended.
Additional Details:
- Control Options: Operable via handheld remote or foot pedal (optional)
- Corrosion Resistance: Designed specifically for saltwater environments with advanced corrosion protection
- Warranty: 2-year limited warranty
