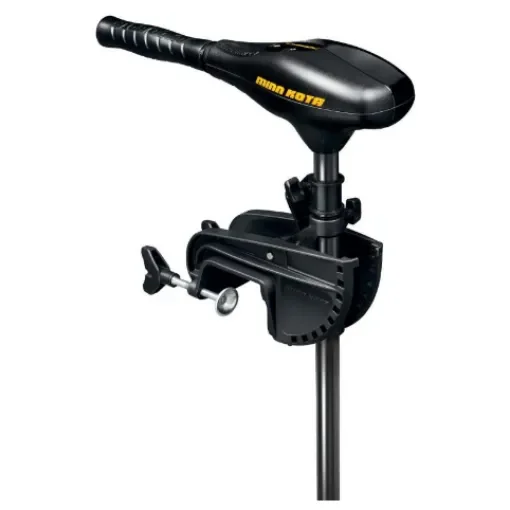

The Minn Kota Classic Electric Motor is designed for freshwater navigation, offering reliable and efficient propulsion for various boat sizes.
- Thrust Options: Available in 40 lbs and 55 lbs thrust, suitable for different boat sizes and weights.
- Mounting System: Features a multi-position mounting bracket made of reinforced composite material, providing durability and resistance to bending, deformation, and UV damage.
- Control Handle: Equipped with an ergonomic and telescopic handle, allowing for remote control of motor power and boat direction.
- Propeller: Includes a Power Prop propeller, designed to push through heavy vegetation.
- Speed Settings: Offers 5 forward and 3 reverse speed settings for versatile operation.
- Shaft Material: Constructed with a composite shaft, ensuring strength and longevity.
Technical Specifications:
- Voltage: 12 V DC
- Shaft Length: Approximately 36 inches (91 cm)
- Mounting System: Lever lock bracket
- Control: 3 reverse gears and 5 forward gears
- Propeller Type: Power Prop (anti-algae propellers)
- Shaft Material: Composite material
Materials:
- Shaft: Composite material
- Mounting Bracket: Reinforced composite material
- Handle: Ergonomic and telescopic design
- Propeller: Power Prop
Compatibility Information: This motor is suitable for freshwater use and is designed to be mounted on the transom of various boat types. The thrust levels (40 lbs and 55 lbs) are appropriate for boats with total weights ranging from 1,600 to 2,599 lbs and lengths between 16' and 17', respectively.
Additional Details:
- Cool Quiet Power System: Dissipates heat even under extreme conditions, reducing propeller rotation noise and extending motor life.
- Battery Considerations: For optimal performance, ensure the battery's power matches the motor's requirements. For example, a 55 lb thrust motor consuming 70 A at top speed, powered by a 110 Ah battery, will achieve approximately 1 hour and 30 minutes of autonomy.
