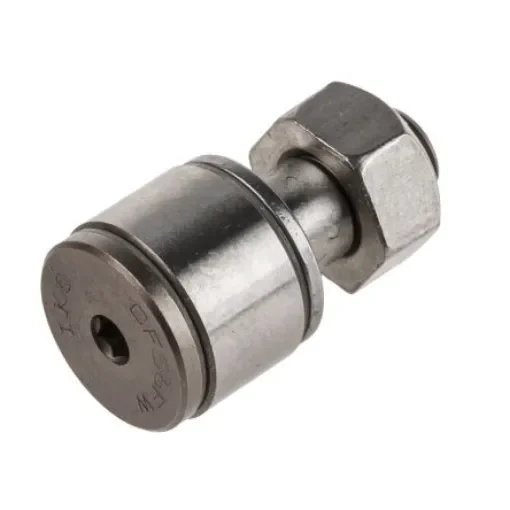

Miniature Thrust Cam Follower CFS 6FW, 6mm ID, 12mm OD
Compact and durable miniature thrust cam follower designed for high accuracy applications.
Manufacturer part number: CFS 6FW
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Roller Diameter = 12mm
Roller Length = 22.5mm
Type = Miniature Thrust
Bore Size = 6mm
Static Load Rating = 1760N
Dynamic Load Rating = 1670N
Material = Stainless Steel
Miniature Type Cam Followers CFS. The miniature type cam followers from IKO are some of the smallest cam followers in the world. Designed to be compact, they have a stud diameter ranging from 1.4 mm to 6 mm and an outside diameter from 4 mm to 13 mm. Cam followers with a thrust washer have high wear and heat resistance between the outer ring and the stud head. Stainless steel cam followers are corrosion resistant and can be used in oil-inhibited areas, water mist environments and clean rooms. The CF1.4WV cam follower is the smallest in the world with a stud diameter of only 1.4 mm and an outside diameter of 4 mm. The follower has a hexagon socket enabling easy mounting, a full complement load type and thrust washers. Features and Benefits. Hexagon socket hole for easy mounting CFS1.4WV has full complement load capacity Thrust washer resistant to mounting errors CFS ; CFSW - Made from high carbon steel CFSFW – Made from stainless steel Shield type seal structure Cylindrical outer ring Alvania grease S2. Product Application Information. Suitable for light loaded high accuracy cam mechanisms and linear motion follower bearings. This series can be used in various fields such as precision measuring devices, equipment for electronic parts and office appliances.
