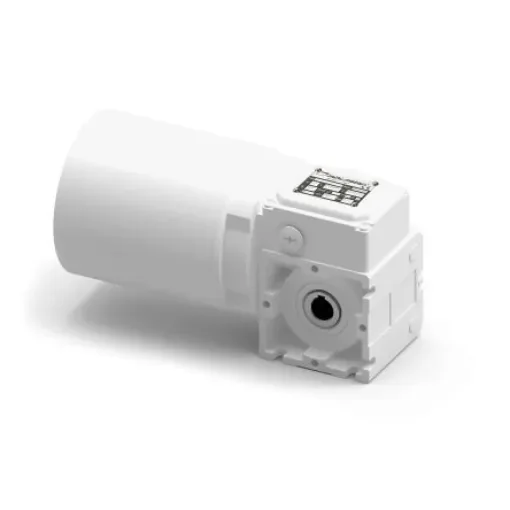

Mini Motor XCF Geared AC Geared Motor, 290 W, 3 Phase, 2 Pole, 400 V - XCF5T2-20-B3

Power Rating = 290 W
Frequency Rating = 50Hz
AC Motor Type = Geared
Supply Voltage = 400 V
Phase = 3
Output Speed = 140 rpm
Number of Poles = 2
Gearhead Type = Worm
Gear Ratio = 20:1
Width = 96mm
Current Rating = 1.56 Amm
Depth = 151mm

WORM GEARED MOTOR. White epoxy protective coated for use in harsh environments. Technicalities, MOTOR: Asynchronous three-phase motor with 2 poles. Protection IP67 in compliance with IEC/EN 60529 standards. GEAR UNIT: With die-cast aluminium casing. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with thread rotating on ball and roller bearings. Output shaft in stainless steel. Lubrication with special long-lasting oil. Sealing rings designed for high temperatures. Rated torque from 4.4 to 35 Nm.For clean environments Up to 35Nm rated torque Minimal dirt trap points Epoxy coated with no external fan
