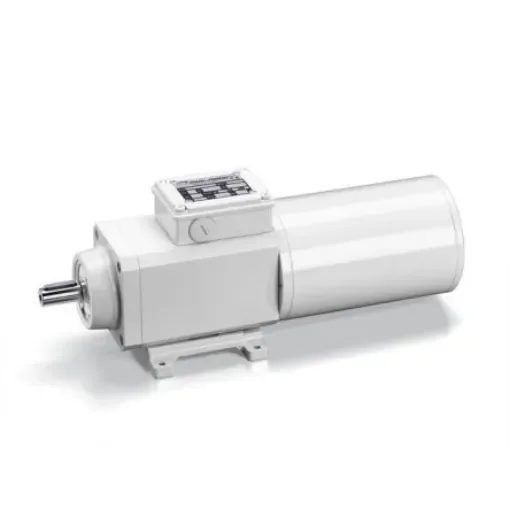

Mini Motor Geared AC Geared Motor, 130 W, 3 Phase, 2 Pole, 230 V, 400 V - PAF4T2-14.12-B3
High-efficiency 130W 3 phase geared motor designed for durability and performance.
Manufacturer part number: PAF4T2-14.12-B3
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Power Rating = 130 W
AC Motor Type = Geared
Supply Voltage = 230 V, 400 V
Phase = 3
Number of Poles = 2
Shaft Diameter = 14mm
Width = 100mm
Current Rating = 380 mA, 650 mAmm
Bearing Type = Rollermm
EN: Inline Helical Geared Motor. 130 W three-phase motor USA: Inline Helical Geared Motor. Single-phase and three-phase motor 1/5.6 HP MOTOR: Three-phase 2-pole asynchronous motor, totally enclosed. Built-in thermal cutoff. Winding Class H. Protection IP67 in compliance with IEC/EN 60929 standards. GEAR UNIT: Coaxial with die-cast aluminium gearcase. Hardened and tempered gears with their shafts rotating on roller bearings. Seal rings in special high-temperature rubber (FKM). Lubrication with special long-lasting oil for use with foodstuffs (H1). There are 14 available gear ratios (i), from 6.48 to 372.8. Rated torque up to 20 Nm. White epoxy paint protective coat. Version B3 - B5. ALWAYS specify application environment.
