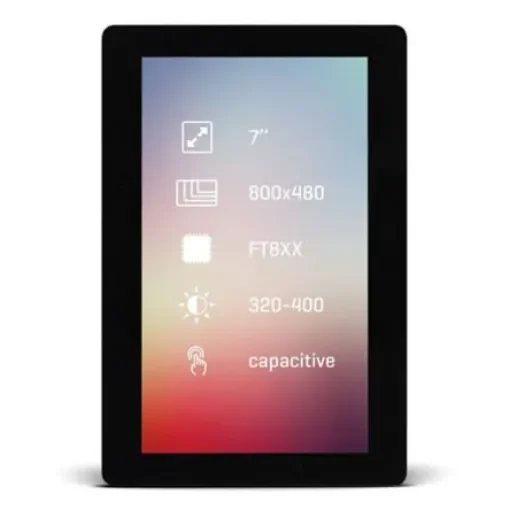

MikroElektronika MIKROE-2178 TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels

Diagonal Display Size = 7in
Interface Type = QSPI, SPI
Resolution = 800 x 480pixels
Touch Screen = Yes
Viewing Area Dimensions = 154 x 86mm
Touch Screen Type = Capacitive
Backlight Type = LED
Display Mode = Transmissive
AC or DC Input Voltage = dc
Dimensions = 179.96 x 119 x 11.65mm
Display Matrix Technology = TFT
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +70°C
Brightness = 350cd/m²
Current Rating = 110mA

Riverdi Colour TFT LCD Displays. A range of high quality, cost effective Riverdi colour TFT LCD displays from MikroElektronika. These portrait format displays are suitable for a wide range of industrial and consumer applications and are available in basic or capacitive touch screen versions. Most of the displays are available with a white or black protective bezel. The interface type is I2C/SPI for the 2.8, 3.5 and 4.3 inch displays, and SPI/QSPI for the 5 and 7 inch displays. A MikroElektronika Riverdi click adapter board is available to allow use of the displays with various items of MikroElektronika hardware, see RS ; 136-0795 136-0795. 2.82" Displays, 320 x 240 pixels MIKROE-2156 ( ; 139-3629 139-3629 ) – Non touchscreen MIKROE-2158 ( ; 139-3630 139-3630 ) – Capacitive Touch MIKROE-2159 ( ; 139-3631 139-3631 ) – Capacitive Touch with White Bezel MIKROE-2160 ( ; 139-3632 139-3632 ) – Capacitive Touch with Black Bezel 3.5" Displays, 320 x 240 pixels MIKROE-2161 ( ; 139-3633 139-3633 ) – Non touchscreen MIKROE-2163 ( ; 139-3635 139-3635 ) – Capacitive Touch 4.3" Displays, 480 x 272 pixels MIKROE-2164 ( ; 139-3636 139-3636 ) – Non touchscreen MIKROE-2166 ( ; 139-3637 139-3637 ) – Capacitive Touch MIKROE-2167 ( ; 139-3638 139-3638 ) – Capacitive Touch with White Bezel MIKROE-2168 ( ; 139-3639 139-3639 ) – Capacitive Touch with Black Bezel 5.0" Displays, 800 x 480 pixels MIKROE-2169 ( ; 139-3641 139-3641 ) – Non touchscreen MIKROE-2171 ( ; 139-3642 139-3642 ) – Capacitive Touch MIKROE-2172 ( ; 139-3643 139-3643 ) – Capacitive Touch with White Bezel MIKROE-2173 ( ; 139-3644 139-3644 ) – Capacitive Touch with Black Bezel 7.0" Displays, 800 x 480 pixels MIKROE-2174 ( ; 139-3645 139-3645 ) – Non touchscreen MIKROE-2176 ( ; 139-3646 139-3646 ) – Capacitive Touch MIKROE-2177 ( ; 139-3647 139-3647 ) – Capacitive Touch with White Bezel MIKROE-2178 ( ; 139-3648 139-3648 ) – Capacitive Touch with Black Bezel
