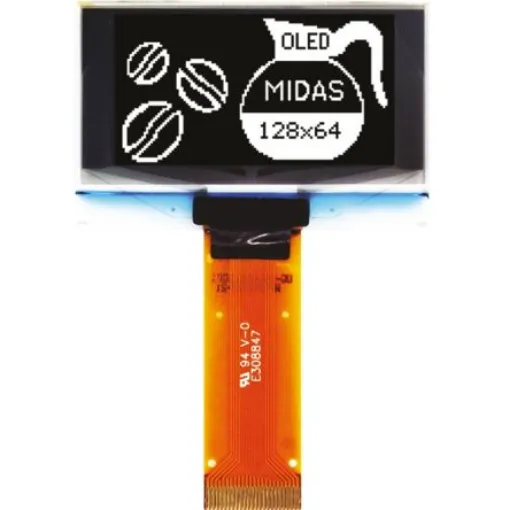

Midas 1.54in White Passive matrix OLED Display 128 x 64pixels TAB I2C, Parallel, SPI Interface - MCOT128064BY-WM
Compact 1.54in OLED display with high contrast and versatile interface options.
Manufacturer part number: MCOT128064BY-WM
GTIN: 5059045524007
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Diagonal Display Size = 1.54in
Viewing Area Dimensions = 37.05 x 19.51mm
Matrix Type = Passive
Display Colours = White
Resolution = 128 x 64pixels
Contrast Ratio = >10000:1
Driver Mounting = TAB
Interface Ports = I2C, Parallel, SPI
Dimensions = 42.04 x 27.22 x 1.45mm
Depth = 1.45mm
Height = 27.22mm
Maximum Operating Temperature = +70°C
Viewing Area Height = 19.51mm
Some versions have a wider operating temperature range and higher contrast ratio – see manufacturer ‘s data for details. Midas Graphic OLED Displays, TAB. A range of TAB (Taped Automated Bonding) monochrome OLED displays from Midas. These TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides high-visibility displays with outstanding visual characteristics, including high contrast and wide viewing angles. The modules are available in a wide range of display colours and resolutions, and have a typical operating life of 60,000 hours. Viewing angle: > 160° horizontal and vertical Contrast ratio: > 2000:1 Operating temperature range: -30 to 70°C Operating life: 60,000 hours at 25°C Interface type: Parallel/Serial (823-5948 has I2C only)
