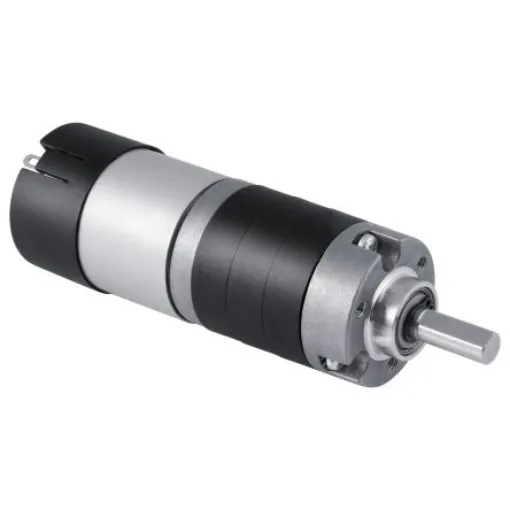

Micromotors Brushed Geared DC Geared Motor, 8.6 W, 24 V dc, 2.5 Nm, 11 rpm, 5.5mm Shaft Diameter - PS150-24-425
High-performance 24V brushed geared DC motor with 2.5 Nm torque and 11 rpm speed.
Manufacturer part number: PS150-24-425
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Power Rating = 8.6 W
Output Speed = 11 rpm
Shaft Diameter = 5.5mm
Maximum Output Torque = 2.5 Nm
Gearhead Type = Planetary
Gear Ratio = 425:1
Dimensions = 30 (Dia.) x 87.7 mm
Current Rating = 360 mA
Length = 87.7mm
Standards Met = ISO 9001:2008
Geared Motors - PS150 Series. Planetary Geared DC Motor PS150 series. Planetary geared motor 24 Vdc nominal voltage Motor interference suppression by VDR Outgoing shaft supported by two ball bearings Direction of rotation depending on polarity Can be mounted in any position Temperature range -20 to +60 °C
