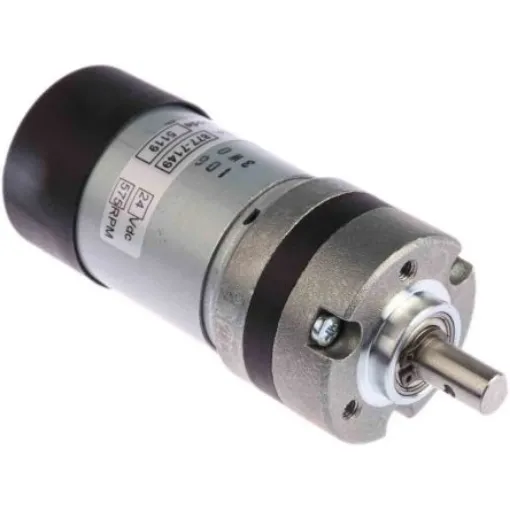

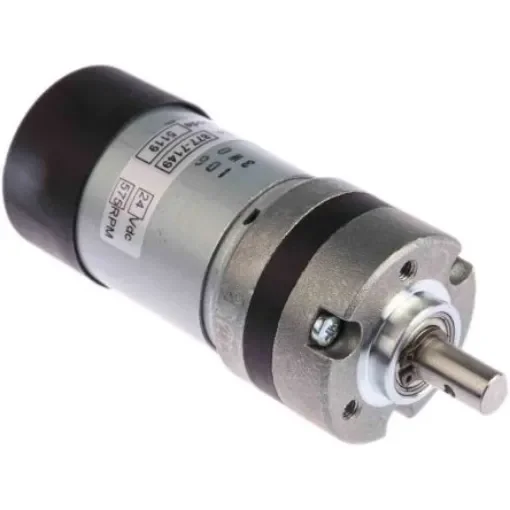

Micromotors Brushed Geared DC Geared Motor, 22.8 W, 24 V dc, 20 Ncm, 575 rpm, 8mm Shaft Diameter - E192-24-5
High-performance brushed geared DC motor with 22.8W power and 575 rpm speed.
Manufacturer part number: E192-24-5
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Power Rating = 22.8 W
Output Speed = 575 rpm
Shaft Diameter = 8mm
Maximum Output Torque = 20 Ncm
Gearhead Type = Planetary
Gear Ratio = 5:1
Dimensions = 40.5 (Dia.) x 86 mm
Current Rating = 950 mA
Length = 86mm
Standards Met = ISO 9001:2008
Geared Motors - E192 Series. Planetary Geared DC Motor E192 series. Planetary geared motor 24 Vdc nominal voltage Motor interference suppression by VDR and capacitors Outgoing shaft two ball bearings supported Direction of rotation depending on polarity Can be mounted in any position Temperature range -20 to +60 °C
