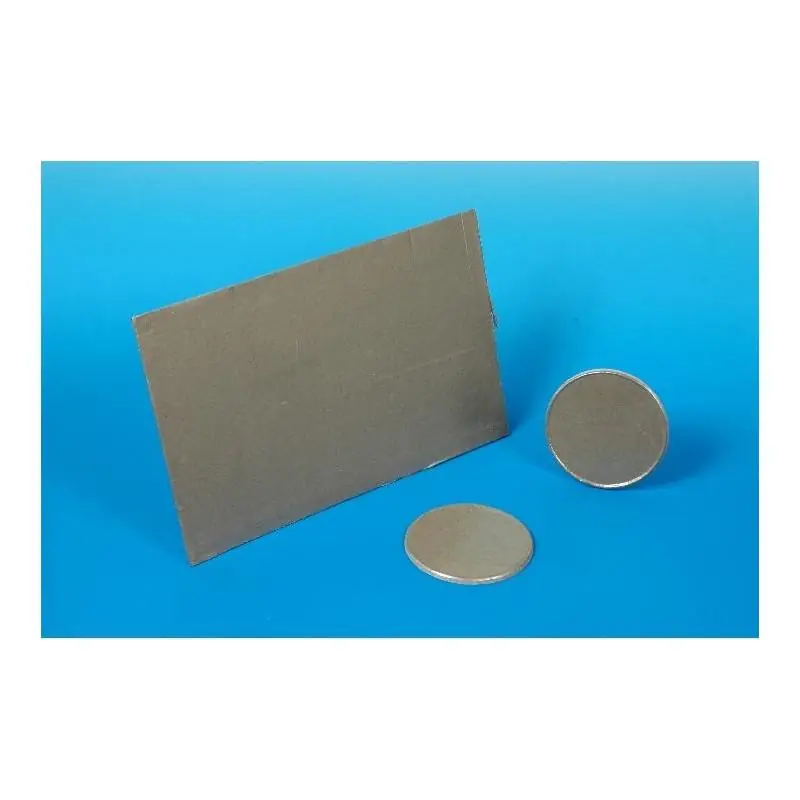

The Mica Gasket Sheet 600x500mm is a high-performance sealing solution designed for extreme temperature and chemical environments. Crafted from phlogopite mica flakes bonded with a silicone binder, this gasket sheet offers exceptional thermal insulation and mechanical stability.
- High-Temperature Resistance: Continuous operating temperature up to 800°C, with short-term exposure up to 900°C.
- Chemical Resistance: Resistant to solvents, acids, bases, and mineral oils, depending on the metals used.
- Low Thermal Conductivity: Provides effective thermal insulation, reducing heat loss and improving energy efficiency.
- Non-Flammable: Does not support combustion, enhancing safety in high-temperature applications.
- Asbestos-Free: Physically harmless and can be disposed of with general waste.
Technical Specifications:
- Material Composition: Phlogopite mica flakes bonded with a silicone binder.
- Density: Approximately 2.3–2.4 g/cm³.
- Compressive Strength: ≥40 N/mm².
- Recovery: 35–45% (ASTM F-36A).
- Ignition Loss at 800°C: Less than 5%.
- Thickness: 1.5 mm.
- Dimensions: 600 mm x 500 mm.
Compatibility Information:
- Ideal for sealing applications in high-temperature environments, including hot gas systems, burners, heat exchangers, oxidizing environments, and exhaust collectors.
