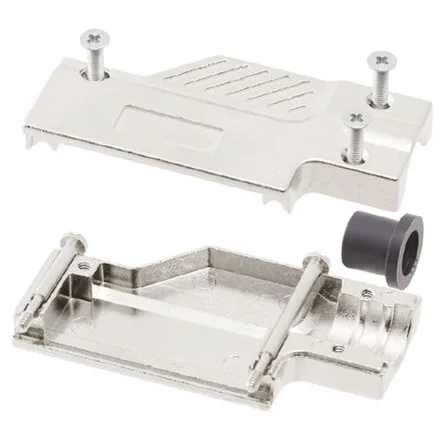

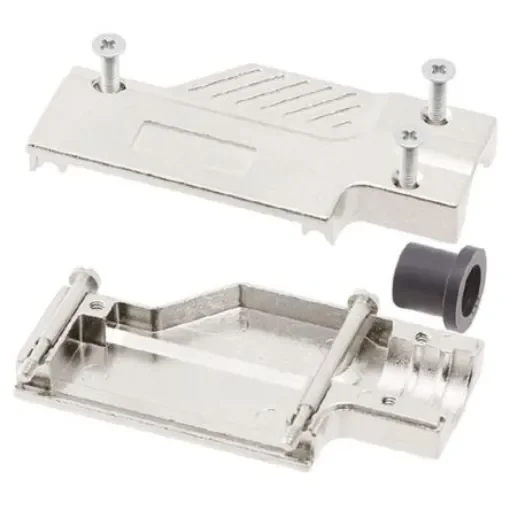

MH Connectors MHDCMR Series Zinc Right Angle D Sub Backshell, 37 Way, Strain Relief - MHDCMR37-ULP

Number of Contacts = 37
D-Sub Shell Size = C
Body Orientation = Right Angle
Colour = Silver
Strain Relief = Yes
Series = MHDCMR

MH Connectors Metal D-Connector hoods, MHDCMR Series, 90 Degrees. MH Connectors low profile D-connector hoods, MHDDCMR series, this range of D-connector hoods are of Die Cast Zinc construction and offer cable 90 degree entry are re-openeable and offer excellent EMI connector protection with Nickel plating, full metal Jackscrews with 4-40 UNC threading and various sizes of plastic grommets. Zinc, Nickel plated Backshell halves Right Angle Cable entry for diameters from 4 to 16.5 mm depending on Series and size UNC 4-40 Jackscrews Plastic Grommets. Stock Number Features:. ; 720-3035 720-3035 9 way K Series, 2 piece ABS compression insert grommet for diameters 4 - 9 mm, Operating temperature -40 to +120 ° C ; 720-3039 720-3039 25 way K Series, 2 piece ABS compression insert grommet for diameters 4 - 9 mm, Operating temperature -40 to +120 ° C ; 821-2753 821-2753 9 way ULP Series, 1 piece Thermoplastic compression insert grommet for diameters 5.3 - 8.1 mm, Operating temperature -25 to +90 ° C ; 821-2762 821-2762 15 way ULP Series, 1 piece Thermoplastic compression insert grommet for diameters 5.3 - 8.1 mm, Operating temperature -25 to +90 ° C ; 821-2765 821-2765 25 way ULP Series, Supplied with a metal clamp for diameters 5.8 - 11.4 mm, Operating temperature -25 to +90 ° C ; 821-2769 821-2769 37 way ULP Series, 1 piece Thermoplastic compression insert grommet for diameters 8.9 - 16.5 mm, Operating temperature -25 to +90 ° C
