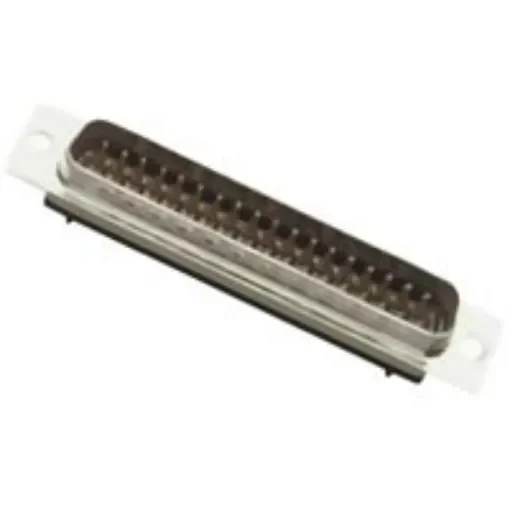

MH Connectors MH105 37 Way Cable Mount D-sub Connector Plug, 2.77mm Pitch - MH10554
High-quality 37 way D-sub connector plug designed for reliable cable mounting.
Manufacturer part number: MH10554
Number of Contacts = 37
Gender = Male
Body Orientation = Straight
Mounting Type = Cable Mount
Pitch = 2.77mm
Termination Method = IDC
Current Rating = 1.5A
Housing Material = Steel
Voltage Rating = 1.0 kV
Length = 69.36mm
Width = 12.55mm
Depth = 15.5mm
Contact Plating = Gold, Tinmm
Maximum Operating Temperature = +125°C
For Strain relief Bars see stock number ; 821-2901 821-2901 typical. D-Sub IDC Plug and Socket Connectors MH105 Series. A range of D-sub IDC Plugs and Sockets from MH Connectors with 9, 15, 25 and 37 ways respectively: Plugs with 3.1 mm diameter holes: ; 821-2857 821-2857 , ; 821-2850 821-2850 , ; 821-2854 821-2854 , ; 821-2863 821-2863 Plugs with UNC 4-40 Cinch Nuts: ; 821-2866 821-2866 , ; 821-2872 821-2872 Sockets with 3.1 mm diameter holes: ; 821-2876 821-2876 , ; 821-2885 821-2885 , ; 821-2888 821-2888 , ; 821-2882 821-2882 Sockets with UNC 4-40 Cinch Nuts: ; 821-2891 821-2891 , ; 821-2894 821-2894 , ; 821-2898 821-2898 , ; 821-2908 821-2908
