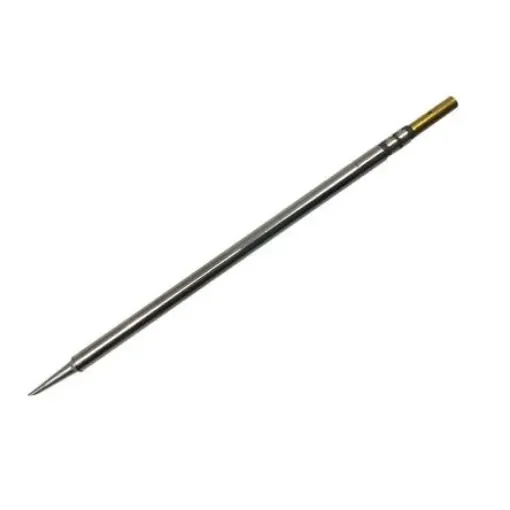

Metcal SMC 1.5 x 16.5 mm Hoof Soldering Iron Tip for use with CV-500 Systems, CV-5200, CV-H1-AV Solder Hand Pieces, - SMC-7HF6015S

Metcal SMC Soldering Tips / Solder Tip Cartridges. SMC- solder tip cartridges are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 4 temperature ranges. 600-series nominally 330 °C. 700-series nominally 390 °C. 800-series nominally 440 °C. 900-series nominally 470 °C. The temperature/series is designated by the by the first digit in the numerical part of the part number: 600 will all be CVC-/SMC-0xx. 700-series will be CVC-/SMC-7xx. 800-series will be CVC-/SMC-8xx. 900-series will be CVC-/SMC-9xx. Metcal recommends the 700-series for many general applications. The 600-series for light load or low temperature applications. 800/900-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal “;SmartHeat®-Technology“; will adjust delivered power during soldering to suit the application. 600 = Temperature Sensitive applications. 700 = FR4/Fibre Glass, for most standard applications. SMC Series applications - Multi-lead speed soldering cartridge for Gull-Winged components, SOP, QFP. Suitable for: CV-5200, CV-500, MX-500, MX-5000, MX-5200, solder iron CV-H1-AV.
