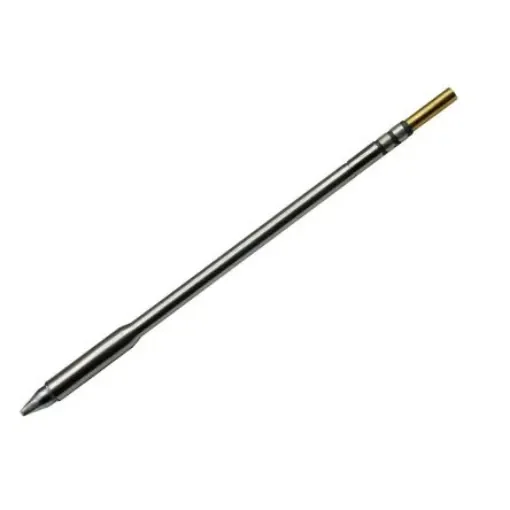

Metcal HCV 1.8 x 10 mm Chisel Soldering Iron Tip - HCV-7CH0018S

Tip Shape = Chisel
Tip Size = 1.8 x 10 mm
Tip Series = 7CH

Metcal HCV Soldering Tips / Solder Tip Cartridges. HCV-solder tip cartridges are the high-power soldering tip range for the Metcal CV-5200, MX-5200 and MX-5200 series soldering systems. All cartridges are available in 3 temperature ranges: 700-series nominally 390 °C. 800-series nominally 430 °C. 900-series nominally 460 °C. The temperature/series is designated by the by the first digit in the numerical part of the part number: 700-series will be HTD-7xx. 800-series will be HTD-8xx. 900-series will be HTDC-9xx. Metcal recommends the 700-series for many applications. 800/900-series for high temperature and thermally demanding applications. Can be used with leaded and lead-free solder. The Metcal “;SmartHeat®-Technology“; will adjust delivered power during soldering to suit the application. 700 = FR4/Fiber Glass, for most standard applications. 800 = FR4/Fiber Glass, for most standard applications. 900 = Ceramic, for high thermal demand applications. CVC range for heavy load application. Suitable for: CV-5200, MX-5000, MX-5200, solder iron CV-H6-HTD, CV-H7-HTD, MX-H6-HTD, MX-H7-SF, solder-Kit CV-UK6, MX-UK6, CV-UK7-HTD.
