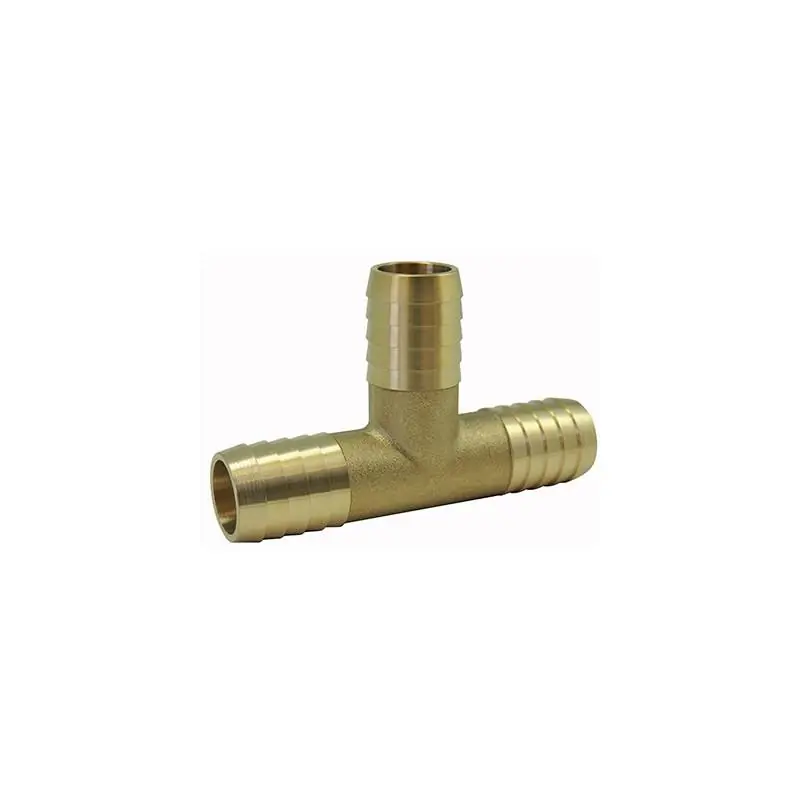

Metal Work - Brass T Fitting for 10mm Tubing - 2L35F13

• Key Features:
• Rotating "T" fitting designed for 10mm diameter tubes.
• Central socket with 1/4 cylindrical female thread.
• Constructed from technopolymer and brass for enhanced durability.
• Allows for thousands of reconnections without compromising pneumatic and mechanical retention.
• Retaining spring holds the tube securely without scratching or deforming it.
• Fitting ring includes slots for screwdriver use, facilitating disconnection in applications with limited access.

Technical Specifications:

• Outer Diameter of Tube: 10mm
• Thread Size: 1/4 cylindrical female thread
• Fluid Compatibility: Suitable for vacuum and compressed air applications
• Operating Pressure: -0.99 bar to 12 bar
• Material: Technopolymer and brass
• Working Temperature Range: -20ºC to +60ºC
• Thread Regulations:
• Conical gas threads conforming to ISO 7.1, BS 21, DIN 2999
• Cylindrical gas threads according to ISO 228 Class A
• Metric threads according to ISO R/262

Materials:

• Body: Technopolymer and brass
• Retaining Spring: Material not specified

Compatibility Information:

• Compatible with 10mm diameter tubes
• Central socket with 1/4 cylindrical female thread

Additional Details:

• Designed for professional use; installation should comply with local regulations.
• Retaining spring ensures secure tube hold without causing damage.
• Fitting ring slots allow for easy disconnection in hard-to-reach areas.
