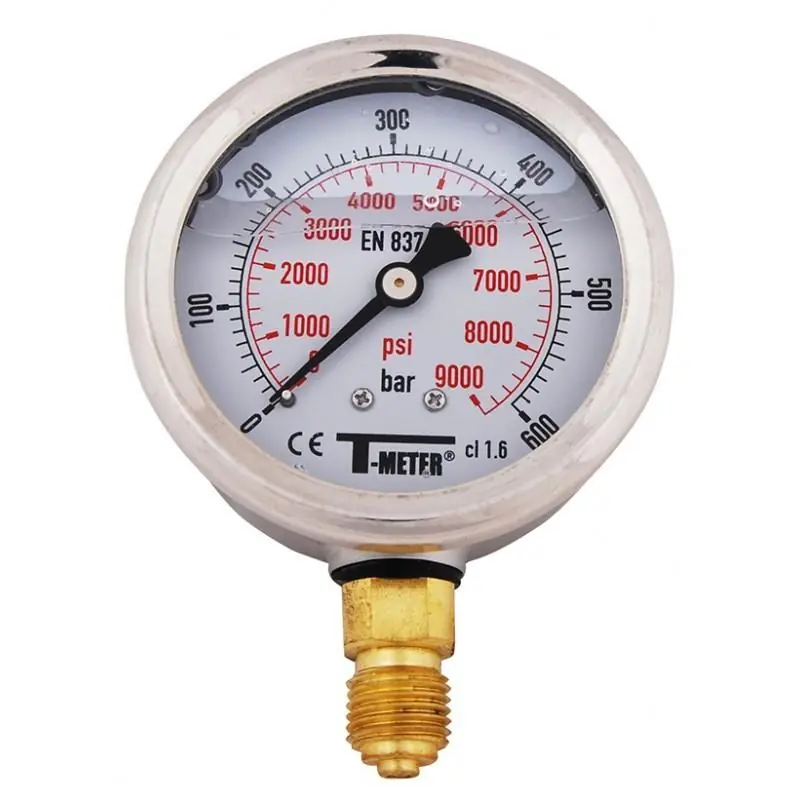

This 63mm diameter glycerine-filled pressure gauge is designed for precise pressure measurement in installations, systems, or machinery. The glycerine filling dampens vibrations and pulsations, ensuring stable readings.
- Pressure Range: 0 to 10 bar
- Connection Type: 1/4" male BSP (British Standard Pipe) thread
- Accuracy: Class 1.6, with a maximum deviation of ±1.6% of the full scale
- Operating Temperature: Ambient temperature between +5°C and +60°C
- Protection Rating: IP65, indicating dust-tight and water-resistant properties
Technical Specifications
- Housing Material: Polished stainless steel AISI 304
- Dial Material: White lacquered aluminum with black numerals
- Pointer Material: Black lacquered aluminum with chrome-plated center
- Window Material: Polycarbonate
- Sensing Element: Copper alloy Bourdon tube
- Damping Liquid: Glycerin USP (99.8%)
- Overpressure Limit: 25% above the full scale
- Working Pressure Limits:
- Constant Pressure: Up to 75% of the full scale
- Variable Pressure: Up to 66.7% of the full scale
- Short Periods: Up to 100% of the full scale
- Temperature Drift: Accuracy variation of ±0.4% per 10°C change from the reference temperature of 20°C ±2°C
Materials
- Housing: Stainless steel ASTM A182 F304
- Connection: Brass
- Glass: Polycarbonate
- Dial: White lacquered aluminum
- Pointer: Black lacquered aluminum with chrome-plated center
- Sensing Element: Copper alloy Bourdon tube
- Damping Liquid: Glycerin USP (99.8%)
Dimensions
- Diameter: 63mm
- Connection Thread: 1/4" male BSP
Compatibility Information
This pressure gauge is suitable for measuring the pressure of liquid and gaseous media that are not corrosive, highly viscous, or prone to crystallization. It is particularly effective in environments subject to vibrations or pressure pulsations. Ensure that the process fluid is compatible with the materials used in the gauge, especially the brass connection.
