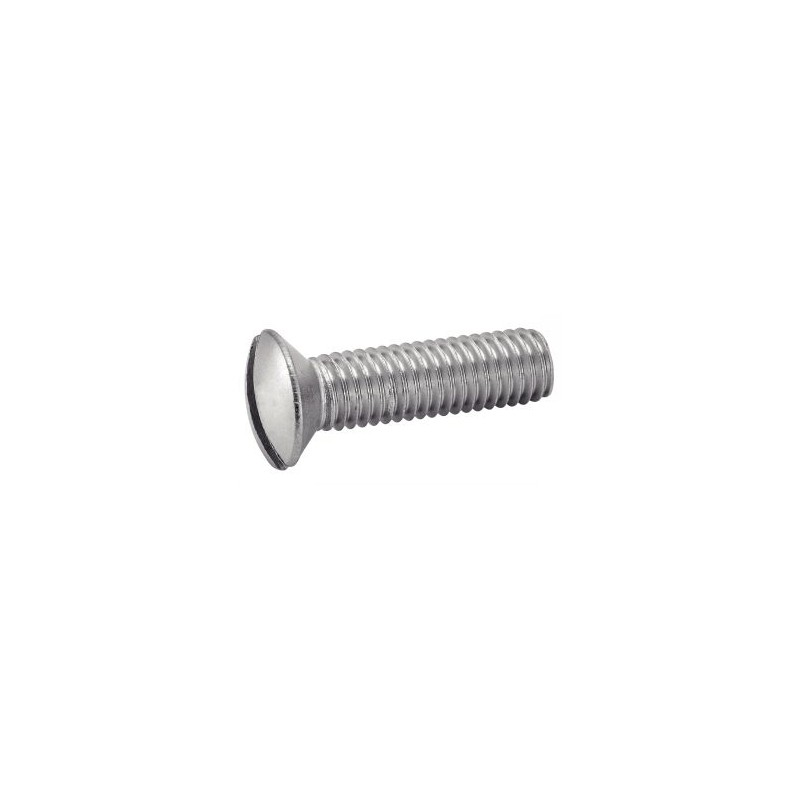

The Metal Clip TFBF A4 Stainless Steel Screws are high-quality fasteners designed for applications requiring enhanced corrosion resistance, particularly in marine and industrial environments.
- Material: Crafted from A4 (316) marine-grade stainless steel, these screws offer superior resistance to corrosion, making them ideal for use in saltwater and chemically aggressive environments.
- Head Design: Featuring a slotted oval head, these screws provide a decorative appearance and can be countersunk for a flush finish. The undercut profile allows for a shallow head, suitable for thin materials.
- Threading: Metric threading ensures compatibility with standard metric nuts and tapped holes.
- Standards Compliance: Manufactured according to DIN 964 standards, similar to ISO 2010, NFE 25-124, and UNI 6110, ensuring professional quality and easier identification of similar products.
Technical Specifications
| Diameter (d) | Thread Pitch | Head Diameter (dk) | Head Height (k) | Head Height (f) | Slot Width (n) | Minimum Thread Length (t) | Length (L) |
|---|
| M3 | 0.5 mm | 5.6 mm | 1.65 mm | 0.75 mm | 0.8 mm | 1.2 mm | Customizable |
| M4 | 0.7 mm | 7.5 mm | 2.2 mm | 1.0 mm | 1.0 mm | 1.6 mm | Customizable |
| M5 | 0.8 mm | 9.2 mm | 2.5 mm | 1.25 mm | 1.2 mm | 2.0 mm | Customizable |
| M6 | 1.0 mm | 11.0 mm | 3.0 mm | 1.5 mm | 1.6 mm | 2.4 mm | Customizable |
| M8 | 1.25 mm | 14.5 mm | 4.0 mm | 2.0 mm | 2.0 mm | 3.2 mm | Customizable |
| M10 | 1.5 mm | 18.0 mm | 5.0 mm | 2.5 mm | 2.5 mm | 4.0 mm | Customizable |
Materials
Stainless Steel A4 (316): This grade of stainless steel is alloyed with molybdenum, enhancing its resistance to corrosion, particularly in acidic and chlorinated environments. It is widely used in the cellulose industry, food industry, and shipbuilding.
Dimensions
Diameter (d): Available in M3, M4, M5, M6, M8, and M10 sizes.
Length (L): Customizable based on user requirements.
Compatibility Information
These screws are compatible with standard metric nuts and tapped holes, making them suitable for a wide range of applications in marine hardware, machinery, and construction.
