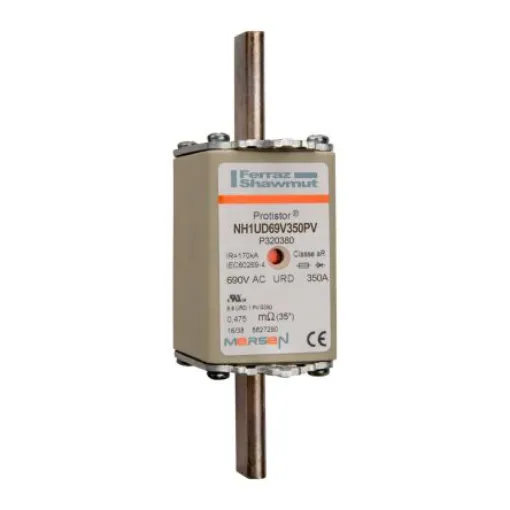

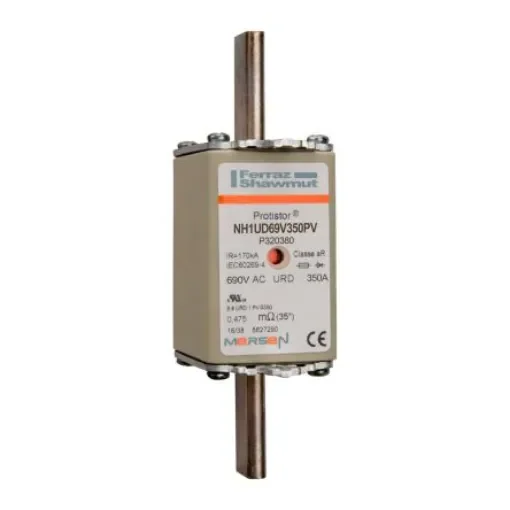

Mersen 350A NH Fuse, NH1, 690V ac - P320380
Reliable 350A NH Fuse for high rupture capacity and protection of power semi-conductors.
Manufacturer part number: P320380
GTIN: 8430399015750
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 350A
Fuse Size = NH1
Voltage Rating = 690V ac
Fuse Standard = IEC 269.4, IEC 60269-4
Application Category = aR
Tag Width = 6mm
Fuse Speed = FF
High Rupture Capacity = Yes
Overall Length = 135mm
Body Length = 68mm
Body Width = 39.5mm
Body Height = 52.5mm
Fuse Dimensions = 68 x 39.5 x 52.5mm
DIN 43620. Protistor® fuses DIN 43620 size T71. Fuses with very high breaking capacity to protect power semi-conductors. Body equipped with a fusion striker capable of activating a micro-switch attached to the body. Order micro-switch separately, stock no. ; 448-3241 448-3241
