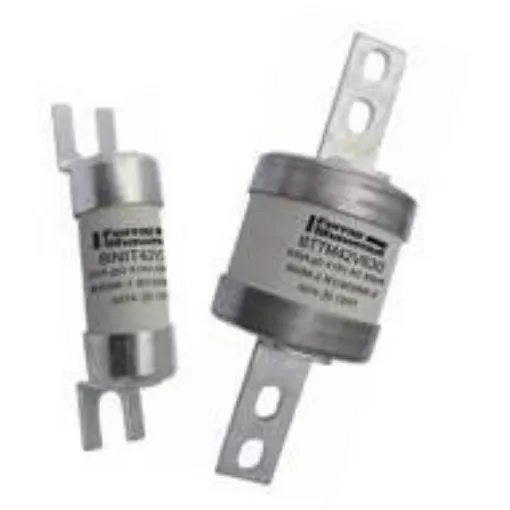

Mersen 250A Bolted Tag Fuse, B3, 240 V dc, 415V ac, 111mm - Z226319 / BTKF42V250
Reliable 250A bolted tag fuse for general and motor protection applications.
Manufacturer part number: Z226319 / BTKF42V250
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 250A
Fuse Size = B3
Voltage Rating = 240 V dc, 415V ac
Fuse Standard = BS 88, IEC 60269
Fixing Centres = 111mm
Application Category = gG
Tag Width = 26mm
High Rupture Capacity = No
Overall Length = 138mm
Tag Type = Boltedmm
Tag Orientation = Centred
Body Height = 75mm
Fuse Dimensions = 59.1 x 75mm
These fuses are designed for : “;General purpose use”; protection (gG type) or motor protection (gM type). This fuse range insures an excellent current limitation for all overloads on a large range of applications. Their size cannot allow exchange by other fuses of higher rating in their range. They are screwed into fuseholders or bolted directly onto busbars, or in fuse interruptors disconnectors
