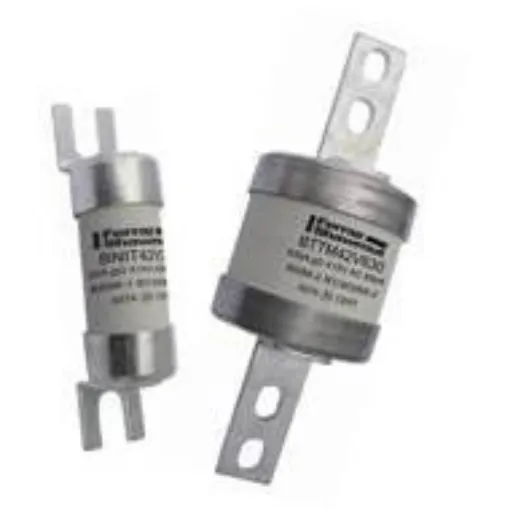

Mersen 200A Bolted Tag Fuse, B2, 240 V dc, 415V ac, 111mm - Y226318 / BTF42V200M315
Reliable 200A bolted tag fuse for general and motor protection applications.
Manufacturer part number: Y226318 / BTF42V200M315
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 200A
Fuse Size = B2
Voltage Rating = 240 V dc, 415V ac
Fuse Standard = BS 88, IEC 60269
Fixing Centres = 111mm
Application Category = gM
Tag Width = 19.5mm
High Rupture Capacity = No
Overall Length = 138mm
Body Diameter = 41.9mm
Tag Orientation = Centred
Body Height = 73mm
Fuse Dimensions = 41.9 x 73mm
These fuses are designed for : “;General purpose use”; protection (gG type) or motor protection (gM type). This fuse range insures an excellent current limitation for all overloads on a large range of applications. Their size cannot allow exchange by other fuses of higher rating in their range. They are screwed into fuseholders or bolted directly onto busbars, or in fuse interruptors disconnectors
