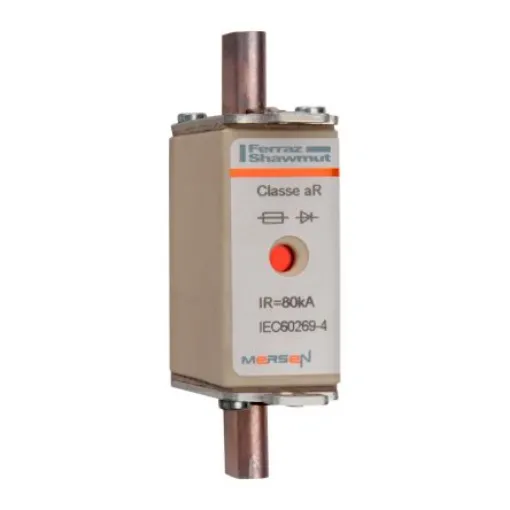

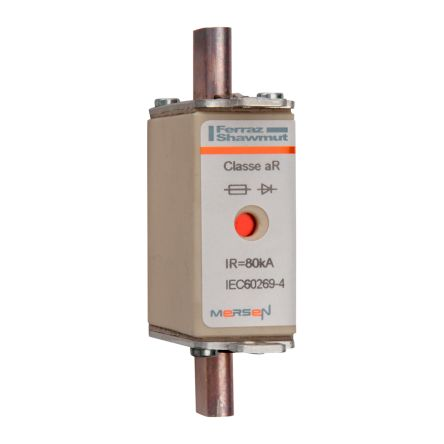

Mersen 125A NH Fuse, NH000, 690V ac - X320065
Reliable 125A NH fuse designed for high rupture capacity and optimal protection.
Manufacturer part number: X320065
GTIN: 3605340358193
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 125A
Fuse Size = NH000
Voltage Rating = 690V ac
Fuse Standard = IEC 269.4, IEC 60269-4
Application Category = aR
Tag Width = 6mm
Fuse Speed = FF
High Rupture Capacity = Yes
Overall Length = 79mm
Body Length = 49.5mm
Body Width = 20.8mm
Body Height = 40.5mm
Fuse Dimensions = 49.5 x 20.8 x 40.5mm
Protistor® DIN 43260 fuses size T000. Fuses with high breaking capacity to protect power semi-conductors. Body equipped with a fusion striker capable of activating a micro-switch attached to the body. Order micro-switch separately, stock no. 448-3241.
