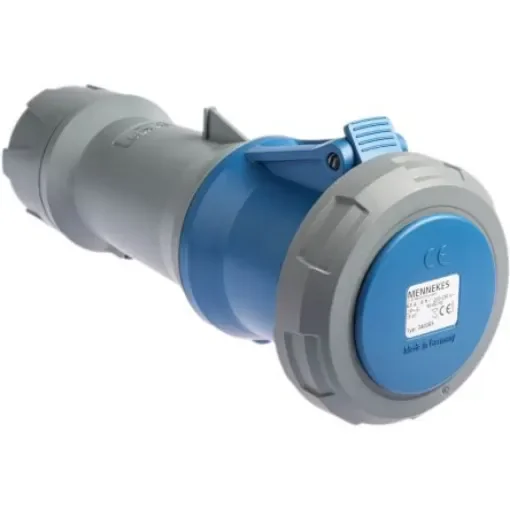

MENNEKES, PowerTOP IP67 Blue Cable Mount 2P + E Industrial Power Socket, Rated At 63A, 230 V - 3403

Current Rating = 63A
Plug/Socket = Socket
Pole Format = 2P + E
Voltage Rating = 230 V
Mounting Type = Cable Mount
Gender = Female
Body Orientation = Straight
Termination Method = Screw Terminal
Series = PowerTOP
Colour = Bluemm²
Minimum Operating Temperature = -25°C
Low Voltage = No

For Plugs see example ; 236-0023 236-0023. PowerTOP Connectors. Due to a completely new manufacturing process, the X-CONTACT® sleeve obtains resilient properties based solely on its material characteristics, without the need to use any additional spring elements. Thanks to the shape of the X-CONTACT® sleeve, a particularly safe contact closure can be achieved. The special design of the X-CONTACT® reduces the effort of insertion and withdrawal by up to 50%. An advantage that simplifies work processes and improves safety especially with high electrical currents. With X-CONTACT®, MENNEKES creates a safe contact closure and easy handling at a new, equally high level. But how does X-CONTACT® achieve these benefits even with currents of 63 A or 125 A? A glance into the opening of an X-CONTACT® sleeve reveals the intelligent functional principle: the X-shaped slot and groove in the inner wall provides four advantages of the new design: innovative, simple, durable and safe. We call it the X principle. Spring loaded covers protect contacts when not in use and latch on to mating plugs Easy to assemble as terminals are open to receive bare conductors which are accessible from one direction External cable clamp simplifies installation and provides support of cable preventing movement around seal X-CONTACT
