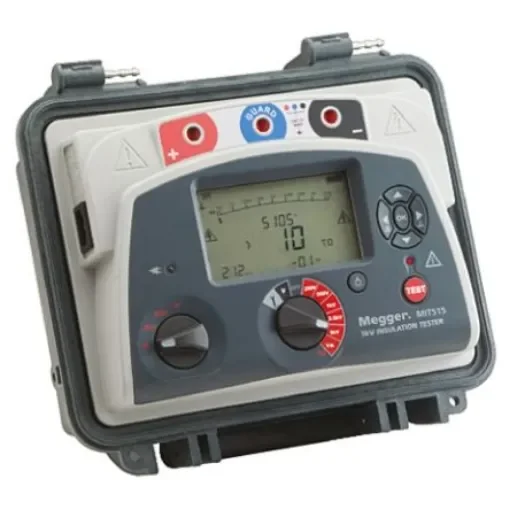

Megger MIT515 Insulation Tester, 250V Min, 5000V Max, 10TO Max, CAT IV - 1002-690

Model Number p = MIT515
Tester Type = Insulation Tester
Minimum Test Voltage = 250V
Maximum Insulation Resistance Measurement = 10TO
Display Type = LCD
Test Current = 6mA
Power Source = Battery, Mains
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +50°C
Safety Category Level = CAT IVV
Width = 285mm

Megger Insulation TesterThe Megger MIT515 5kV lightwEight and compact insulation tester are used for diagnostics testing and maintenance of high voltage electrical equipment. It measures insulation resistance up to 10Tohm and offers tests such as polarisation index and dielectric absorption ratio testing. The device has lithium-ion batteries and the large, clear and easy to read display makes it suitable for use in sunlight and poorly lit environments. The information displayed by it includes resistance, voltage, leakage current, capacitance, battery status and time constant. The elapsed time is also displayed constantly, which reduces the need for a separate timer.Features and BenefitsPI, DAR test Improved productivity : Operates from line power/mains if battery is dead Li-ion battery - Extended capacity, rapid charge Advanced memory with time/date stamp Unique locking HV insulated plugs No detachable clips for safety with capacitance Screened options for high noise environments High-quality silicon double insulated cableApplicationsCables Transformers Motors/Generators Circuit breakers BushingsCertificationsCATIV 600 V IP65 rated IEC61326-1
