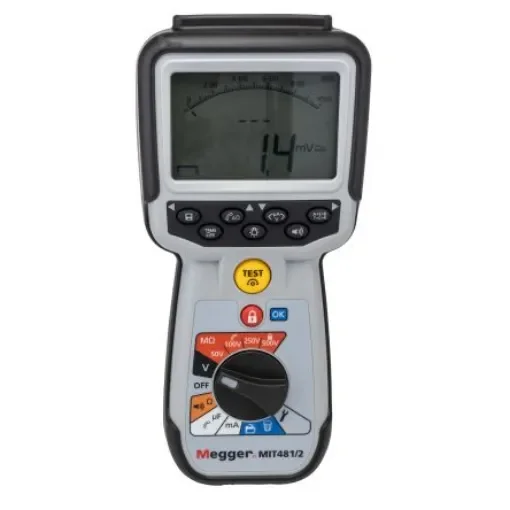

Megger MIT481 Insulation Tester, 50V Min, 500V Max, 200GO Max, CAT IV - 1004-741

Model Number p = MIT481
Tester Type = Insulation Tester
Maximum Test Voltage = 500V
Maximum Insulation Resistance Measurement = 200GO
Display Type = Digital
Battery Type = Alkaline, NiMH
Maximum Operating Temperature = +55°C
Safety Category Level = CAT IV
Weight = 590 g, 775 (With Boot) gmm

Silicone test lead set, SP5 switched probe, AA Batteries x 6, hard carry case and information CD. Megger MIT480 mk2 Series Insulation ; Continuity Testers. MIT480 mk2 Series insulation ; continuity testers replace the original MIT480 range. Designed for the Telecommunication and Cable testing markets. The tester features a redesigned case, back-stand and 6 cell battery compartment with separate fuse access. Features and Benefits. Insulation testing up to 500 V and 100 GO range in a hand held instrument Three wire connection for tip, ring and earth connection Gated access to 500 V to prevent accidental damage Adjustable insulation test voltage from 10 V to 500 V New case design with optional magnetic hanging strap 600 C TRMS AC and DC voltage measurement Live circuit detection and protection Timed Testing: Automatically test to a time limit Flexible silicone test leads prevent measurement errors on GO ranges above 5 GO CAT IV 600 V IP54 Rated ABS Housing Bluetooth® and software available on MIT485/2
