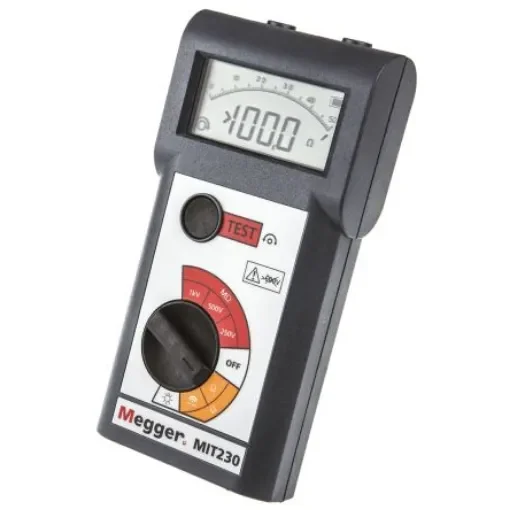

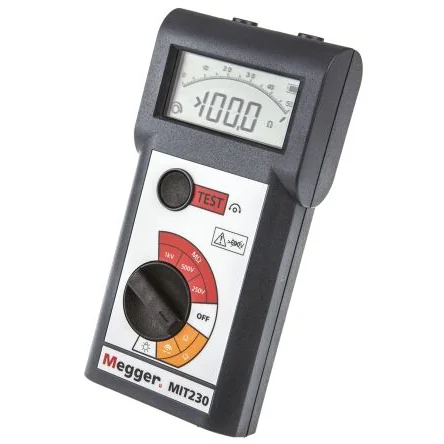

Megger MIT230 Insulation & Continuity Tester, 250V Min, 1000V dc Max, 999MO Max, CAT III 300V - MIT230-EN

Maximum Test Voltage = 1000V dc
Maximum Insulation Resistance Measurement = 999MO
Display Type = LCD
Test Current = 200mA
Battery Type = AA
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +55°C
Safety Category = CAT III 300V
Width = 98mm

When measuring voltages, the use of fused test leads is recommended for personal safety. 6 x AA alkaline batteries, test leads, crocodile clips, carry case, instructions. RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty. 3. MIT230 Insulation ; Continuity Tester. The MIT230 incorporates a range of safety and operation features in one of the smallest electrical insulation testers available. Its LCD offers a combination of digital readout and analogue display, with an analogue pointer response for evaluating circuit charge and discharge characteristics. The instrument housing is in tough ABS. Features ; Benefits. Insulation testing to 1000 MO Dual ; triple test voltages models Digital display with electronic analogue arc display helps to confirm insulation condition ; to monitor fluctuating readings not apparent on the digital display Continuity testing at 200 mA down to 0.01 O resolution Automatic discharge of circuit under test 1 mA test current at selected voltage range Default voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25 V Auto-ranging analogue arc scale shows only the scale in use Live circuit warning above 25 V, also inhibits insulation ; continuity tests above 50 V Lead resistance compensation on continuity Hands free continuity testing Auto power-down after 5 min Complies with IEC 1010-1 safety standard installation Category III, 600 V phase to earth Conforms to EN61557-1 Tests to BS7671, 713-02, 713-03, 713-04, 713-06, 713-08, 413-04-04
