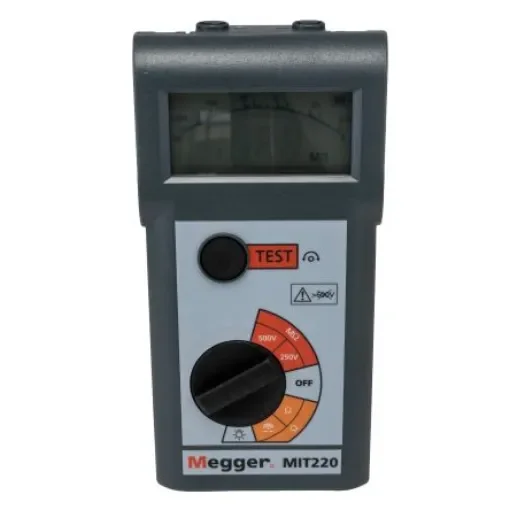

Megger MIT220 Insulation & Continuity Tester, 250V Min, 500V dc Max, 999MO Max, CAT III 300V - MIT220-EN

Model Number p = MIT220
Tester Type = Insulation & Continuity Tester
Maximum Test Voltage = 500V dc
Maximum Insulation Resistance Measurement = 999MO
Display Type = LCD
Test Current = 200mA
Battery Life = 3000 5-Second Tests
Maximum Operating Temperature = +55°C
Safety Category Level = CAT IIIV
Height = 40mm

When measuring voltages, the use of fused test leads is recommended for personal safety. 6 x AA alkaline batteries, test leads crocodile clips, carry case ; instructions. RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty. 3. MIT220 Insulation ; Continuity Tester. The MIT200 is one of the smallest insulation testers available on the market today. With options of a two voltage tester to a three voltage instrument, the MIT200 instruments offer a range of safety and operation features. Insulation testing to 1000MO Dual ; triple test voltages models Digital display with electronic analogue arc display helps to confirm insulation condition ; to monitor fluctuating readings not apparent on the digital display Continuity testing at 200mA down to 0.01ohms resolution Automatic discharge of circuit under test 1mA test current at selected voltage range Default voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25V Autoranging analogue arc scale shows only the scale in use Live circuit warning above 25V, also inhibits insulation ; continuity tests above 50V Lead resistance compensation on continuity Hands free continuity testing Auto power-down after 5 minutes Complies with IEC 1010-1 safety standard installation Category III, 600V phase to earth Conforms to EN61557-1 Tests to BS7671, 713-02, 713-03, 713-04, 713-06, 713-08, 413-04-04
