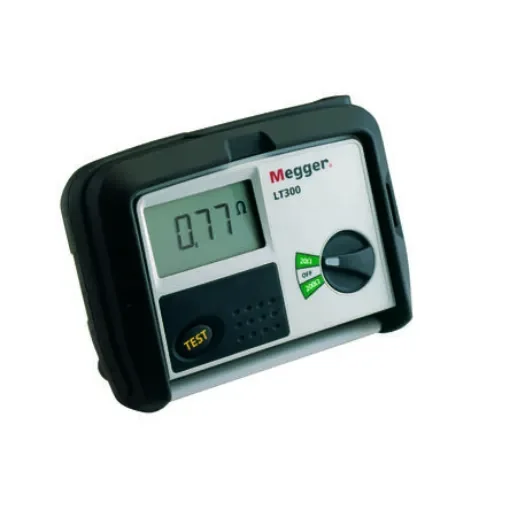

Megger LT300-EN-BS Loop Impendance Tester, Loop Impedance Test Type 2 Wire 550V CAT IV

durable hard carry case; BS1363 mains socket test lead; 8 x AA alkaline batteries; instructions. RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty. 3. LT300 Loop Tester. The LT300 combines high current-loop testing over a wide range of frequencies and supply voltages with simple operation. This is a HIGH CURRENT ONLY tester, designed for installations where there are no RCDs installed. A two-wire test performs a fast loop impedance measurement at a test current up to 27A, with a resolution of 0.01ohms. Frequency range and operating voltage are wide, allowing for a diverse range of applications up to and including CATIV 550V phase-to-phase. Testing commences automatically as soon as the instrument is connected to the supply. Repeat testing is provided by the TEST button. High current loop tester Simple auto start operation 16Hz to 400Hz frequency range Up to CATIV 300V phase-to-earth (550V phase-to-phase) applications Optional two-wire lead set available separately, RS stock no. ; 537-7282 537-7282
