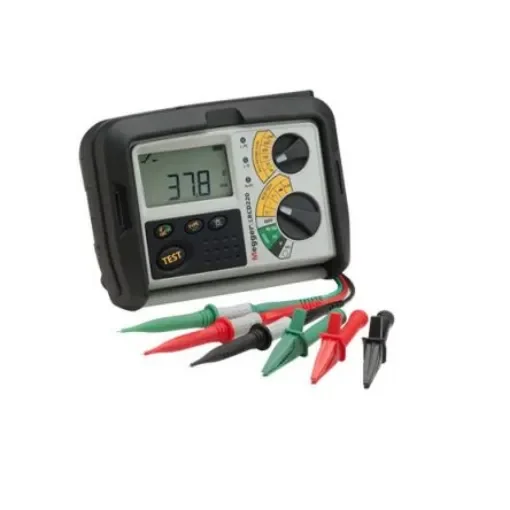

Megger LRCD220-EN-BS Loop Impedance & RCD Combined Tester, Loop Impedance Test Type 2 Wire 500V, RCD Test Type AC

Loop Impedance Test Type = 2 Wire
Maximum Voltage Measurement = 500V
RCD Test Type = AC Selective, DC Selective
PSC Display = Yes
Best Loop Test Accuracy = ±2%
RCD Test Current = 10 mA, 30 mA, 100 mA, 300 mA, 500 mA, 1000mA
Non-Trip Loop Test = Yes
Safety Category = CAT III 300 V, IEC 61010
Display Type = LCD
Battery Life = 2000 Tests
Battery Type = AA
Power Source = Battery
Dimensions = 203 x 148 x 78mm
Weight = 980g
Minimum Operating Temperature = -5°C

Durable hard carry case, instructions, 3 wire test lead with crocodile clips, BS1363 mains socket test lead, 8 off AA alkaline batteries. RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty. 3. LRCD220 Loop ; RCD Tester. The LRCD200 series tester combines an Earth loop impedance tester with an RCD tester. The loop tester is a non-tripping test suitable for systems protected with 30mA or larger RCDs. The RCD testing supports 10mA to 1000mA RCDs with the full range of tests. Ramp testing provides a trip current test for the testing of nuisance tripping RCDs. Suitable for use on 110V or 3 phase supplies.,Designed to meet the tough environment of site work, the instruments are rubber armoured, have a built-in protective front cover, and meet the requirements of BS7671, IEC1010 and BSEN61557. All instruments are IP54 weatherproof. The combined instrument offers all the test functions necessary for live electrical testing requirements, in a simple and cost effective instrument. Built-in protective front cover Tough rubber armoured case Weatherproof to IP54 High current loop testing Phase to phase loop testing Auto RCD testing 1000mA RCD test Phase rotation 110V, 230V and 415V operation Backlit display
