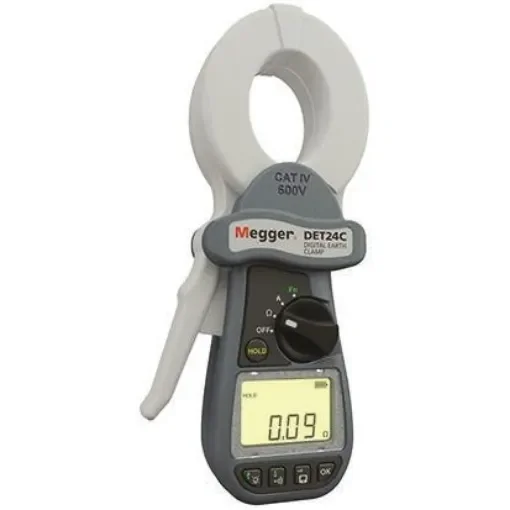

Megger DET24C Earth Tester, 1.5kO CAT IV 600 V - 1007-331

Absolute Maximum Resistance Measurement = 1.5kO
Best Accuracy = 1.5 %
Display Type = LCD
Safety Category = CAT IV 600 V
Battery Life = 24 h
Battery Type = AA
Power Source = Battery, Mains
Dimensions = 248 x 114 x 49mm
Weight = 985g
Height = 49mm
Includes = CD-ROM, User Manual
Length = 248mm
Maximum Operating Temperature = +50°C
Safety Category Voltage = 600V

Carry case, carry strap (wrist loop), user guide CD-ROM, calibration check accessory, powerDB Lite software ; 4 x AA alkaline batteries. DET24C Earth Test Clamp. DET24C is a clamp-on ground resistance tester that set new standards in terms of access, performance, features, simplicity of operation and safety. The units are designed with flat core ends to prevent dirt build-up, ensuring measurement integrity and improved reliability over products with interlocking teeth. Other enhancements include a built-in filter function for electrically noisy environments, time and date stamped stored test results and ultra-long battery life. PowerDB Lite software comes as standard with the instrument. Elliptical clamp shape improves access to earth cables and straps up to 50 mm Low maintenance flat jaw interface Measures ground resistance from 0.05 O to 1500 O Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms CAT IV 600 V safety rating Backlit LCD display Bluetooth® stored test results transfer to PC Advanced memory functionality with download Megger PowerDB/PowerDB Lite™ compatible 300% increase in battery life
