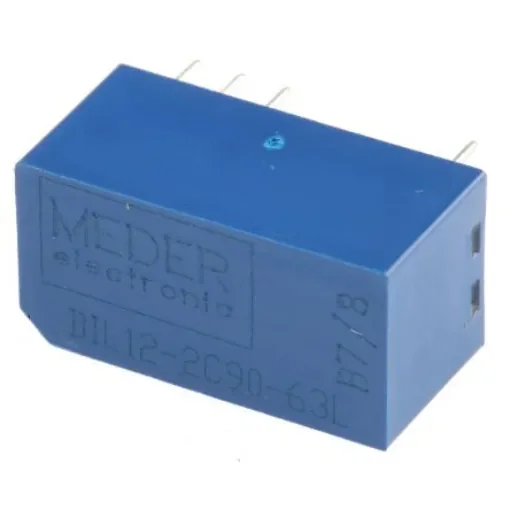

Meder PCB Mount Reed Relay, 12V dc Coil, DPDT, 175V dc Max, 680O - DIL12-2C90-63L
Meder's DPDT PCB mount reed relay features a 12V dc coil and reliable switching capabilities.
Manufacturer part number: DIL12-2C90-63L
GTIN: 5059045541004
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Contact Configuration = DPDT
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Maximum Switching Voltage AC = 175V ac
Maximum Switching Voltage DC = 175V dc
Coil Power = 210mW
Coil Resistance = 680O
Length = 20.1mm
Height = 10.2mm
Depth = 10.2mm
Dimensions = 20.1 x 10.2 x 10.2mm
Isolation Coil To Contact = 3 kV ac, 4.5kV dc
Terminal Type = Through Hole°C
DPCO DIL Relay. Compatible with DIL socket Sealed with PU resin Contact Material Rh Operating temperature -20 to +70°C
