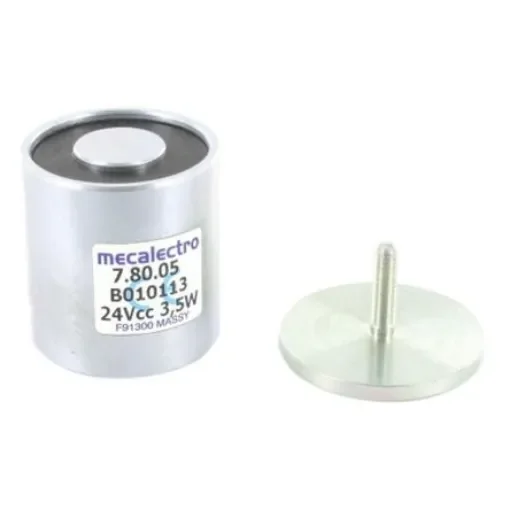

Mecalectro Holding Magnet, 120N Holding Force 24V dc - 7.80.05
Powerful 120N holding magnet for precise positioning in industrial automation and fire safety applications.
Manufacturer part number: 7.80.05
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Holding Force = 120N
Supply Voltage = 24V dc
Diameter = 30mm
Length = 50mm
Width = 30mm
Electromagnetic suction cups. Low power consumption components designed to hold a device in a specific position and to free this device using a simple electrical signal. Operation: - holding: the metal object is held in place on contact with the electromagnet, which is fitted on a fixed element. - release: ''no voltage'' models - the metal object is freed from the electromagnet contact when the power supply is cut ''current emission'' models - the metal object is freed from the electromagnet contact when the power is on Applications: industrial automation and fire safety (locking fire doors, opening smoke extraction dampers, closing ventilation flaps or dampers, etc.) Documentation, curves and footprint dimensions available on request.
