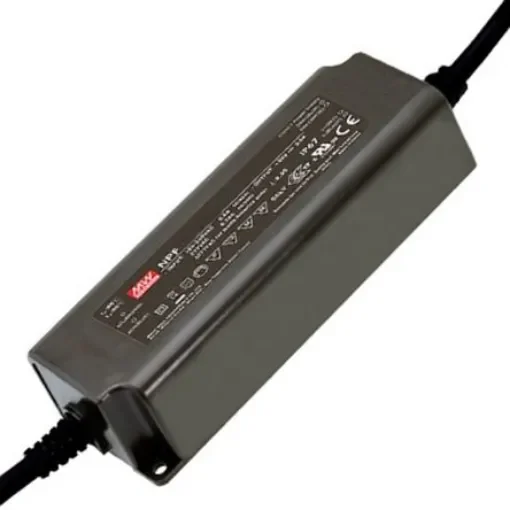

MEAN WELL LED Driver, 12V Output, 90W Output, 7.5A Output, Constant Voltage - NPF-90-12

UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67, design refer to EN60335-1. SELV, cUL, UL, ENEC, CB, CE. Mean Well 90W Constant Voltage LED Drivers - NPF-90 Series. The Mean Well NPF-90 Series is a range of 90W LED Drivers with a high efficiency of up to 91% and a low no load power consumption below 0.15W. These LED power supplies are waterproof, with the case made of 94V-0 flame retardant plastic. The interior of the NPF-90 is fully potted in silicone, making these LED drivers suited to meet the anti-vibration demand up to 5G and enhancing the heat dissipation. The NPF-90 LED drivers are IP67 rated and can be used in highly dusty and humid harsh environment. The class II design and the double insulation weather resistant cable makes the NPF-90 Led drivers ideal for flexible installation of various types of lighting systems. Universal AC input 90 to 305Vac Built in active PFC function High efficiency of up to 95% Short circuit, over current, over voltage and over temperature protection Cooling by free air convection Operating temperature -40C to +70C Fully isolated plastic case Fully encapsulated IP67 rated Class II power unit, no FG pin Suitable for dry, damp, wet locations No load power consumption below 0.15W
