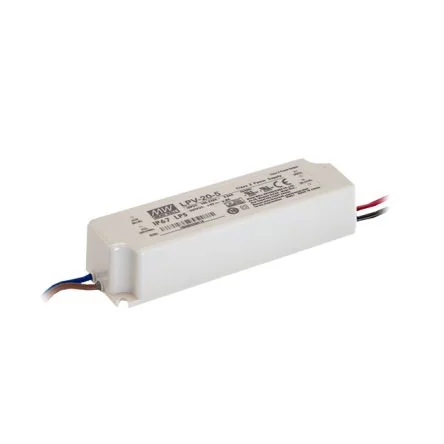

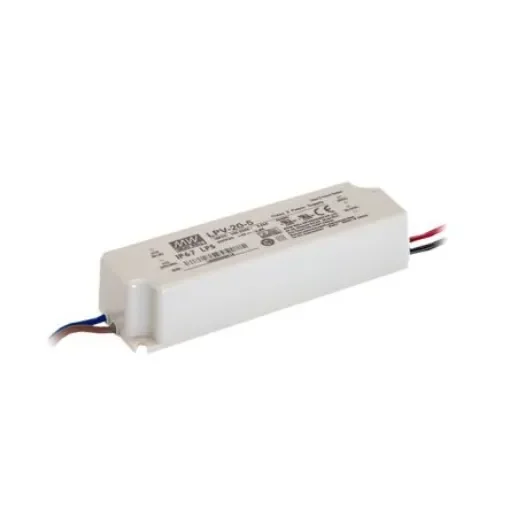

MEAN WELL LED Driver, 12V Output, 20W Output, 1.67A Output, Constant Voltage - LPV-20-12

TUV EN 60950-1, EN 61347-2-13, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91 (except for 48V). UL recognised for Canada ; US. For Industrial Use Only, not in scope of Regulation (EC) No 125/2009. Power derates above 60°C. MTBF to MIL-HDBK-217F. 2. RS - 20W Waterproof (IP67) SMPSU. External switch mode epoxy encapsulated IP67 rated power supplies High efficiency, long life and high reliability Designed for indoor or outdoor installations Suitable for LED lighting and moving sign applications Withstands 300Vac surge input for 5 seconds 100% full load burn-in test Fully regulated output Short circuit, over-current, over-voltage protection 600mm un-terminated, 2-core 18AWG input lead 600mm un-terminated, 2-core 18AWG output lead UL1310 Class 2 power unit, pass LPS EMC compliance to EN 55022 Class B Harmonic current compliance to EN 61000-3-2,-3 Stk nos ; 660-0252 660-0252 , ; 660-0255 660-0255 , ; 660-0259 660-0259 , ; 660-0268 660-0268 are constant voltage power supplies Stk no ; 660-0261 660-0261 is a constant current power supply
