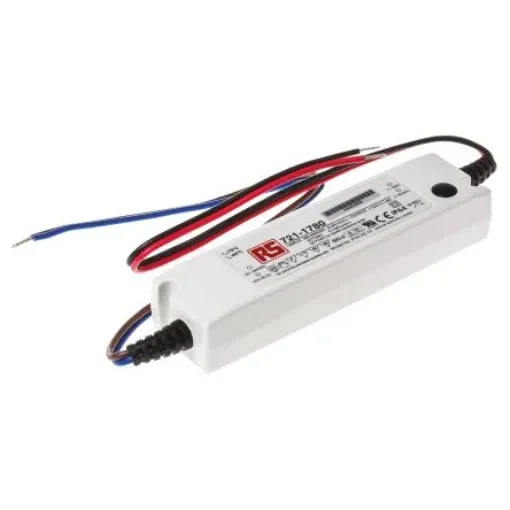

MEAN WELL LED Driver, 12V Output, 19.2W Output, 1.6A Output, Constant Voltage - PLN-20-12RS

TUV EN 61347-1, EN 61347-2-13, UL8750. TUV, UL recognised for Canada ; US. For Industrial Use Only, not in scope of Regulation (EC) No 125/2009. Power derates above 50°C. MTBF to MIL-HDBK-217F. 2. RS - 20W Waterproof (IP64) SMPSU with PFC. External switch mode IP64 rated constant current and constant voltage mode power supplies High efficiency, long life and high reliability Designed for indoor or outdoor installations Suitable for LED lighting and moving sign applications Built-in constant current limiting circuit with adjustable over current protection 100% full load burn-in test Short circuit, over-load, over-voltage, over-temperature protection 320mm un-terminated, 2-core 18AWG input lead 320mm un-terminated, 2-core 18AWG output lead EMC compliance to EN 55015 Power factor correction to EN 61000-3-2
