Mean Well - DC/DC Converter 4.2A 24V - SD-100C-24

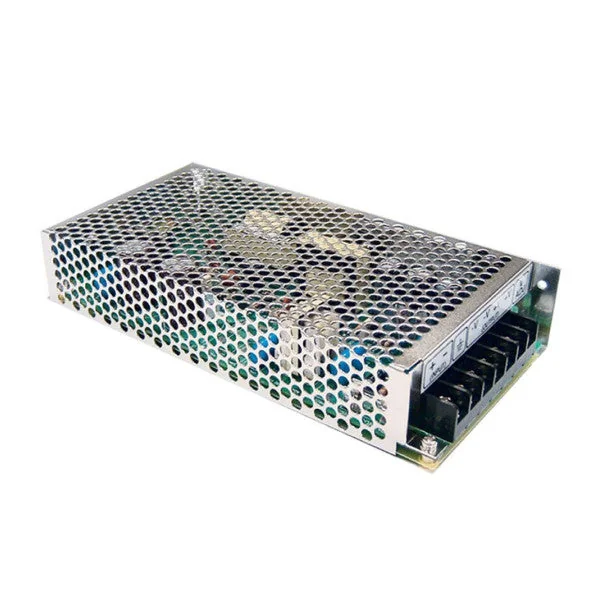

Mean Well SD-100C-24 DC/DC Converter 4.2A

Product description:

• The Mean Well SD-100C-24 is a compact and efficient DC/DC converter that can deliver a continuous output current of 4.2A at 24V DC. This converter is ideal for use in a wide range of industrial and electronic applications.

Features:

• Wide input voltage: 36V to 72V DC
• High efficiency up to 92%
• Continuous output current of 4.2A
• Regulated output voltage
• Built-in protection against overvoltage, undervoltage, overheating, and short circuit
• Compact housing
• Cooling by free air convection
• RoHS compliant

Specifications:

• Input voltage: 36V to 72V DC
• Output voltage: 24V DC
• Output current: 4.2A continuous
• Peak output current: 5.04A
• Efficiency: Up to 92%
• Ripple & noise: < 50mVp-p
• Operating temperature: -40°C to +70°C
• Storage temperature: -40°C to +85°C
• Housing: Metal
• Dimensions: 76.2 x 31.2 x 25.4 mm
• Weight: 250 g

Advantages:

• The Mean Well SD-100C-24 is a reliable and efficient DC/DC converter that offers a long lifespan.
• The converter is easy to install and use.
• The converter is compact and lightweight, making it ideal for use in confined spaces.
• The converter is equipped with a wide range of protection features, making it a safe and reliable choice for a wide range of applications.
