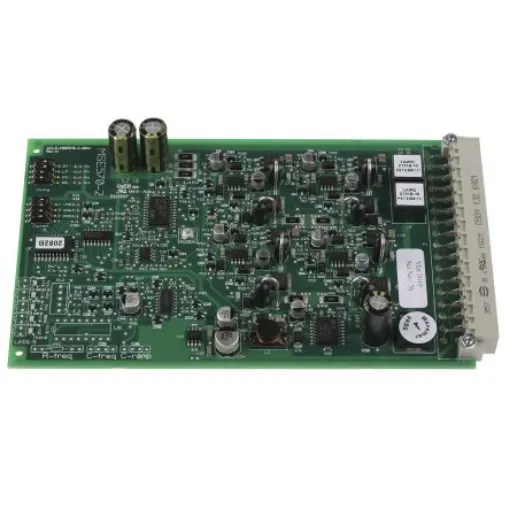

McLennan Servo Supplies Stepper Motor Controller, 3.5 A - MSE570 EVO 2
High-performance stepper motor controller with adjustable current settings for optimal motor control.
Manufacturer part number: MSE570 EVO 2
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Current Rating = 3.5 A
Overall Length = 160mm
Overall Width = 100mm
Overall Depth = 35.5mm
Suitable for use with motors: stock nos. ; 432-8273 432-8273 , ; 440-442 440-442 , ; 440-464 440-464 , ; 440-470 440-470 , ; 191-8328 191-8328 , ; 191-8362 191-8362 , ; 191-8378 191-8378 , ; 191-8384 191-8384 , ; 340-3711 340-3711 , ; 340-3727 340-3727 and ; 340-3733 340-3733. Slimline Bipolar Stepper Motor Drive. Drives motors up to 40V at 3.5A Adjustable drive current settings from 0.5 to 3.5A Output overload protection Synchronisation output for multi-axis systems Full and half step drive modes TTL ; CMOS compatible control interface Output disable input 5 ; 12Vdc auxiliary outputs for external device energisation Status LED's for condition monitoring Provision for assembling on-board oscillator with ramp, low and high speed ranges Single rail power supply for both motor drive and logic supplies
