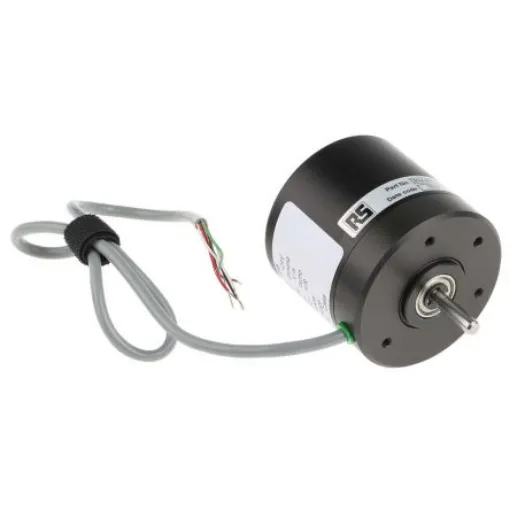

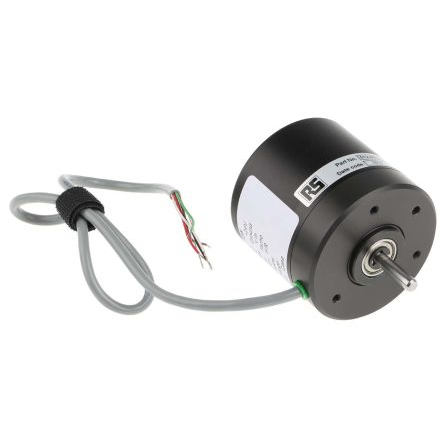

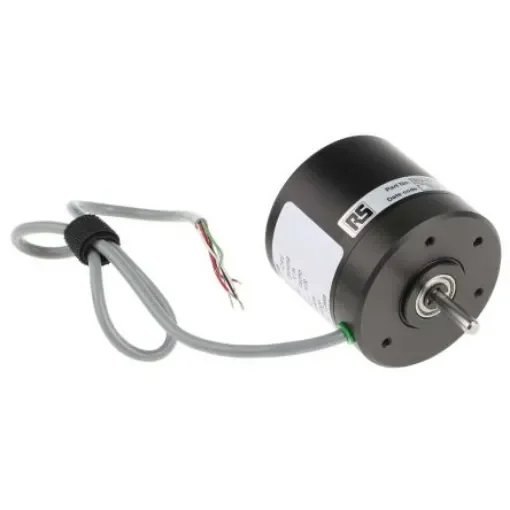

McLennan Servo Supplies Brushless DC Motor, 35 W, 24 V dc, 0.11 Nm, 3650 rpm, 5.99mm Shaft Diameter - BLDC58-35 MK2
High-performance 35W brushless DC motor with 3650 rpm speed, perfect for various industrial applications.
Manufacturer part number: BLDC58-35 MK2
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushless
Power Rating = 35 W
Output Speed = 3650 rpm
Shaft Diameter = 5.99mm
Maximum Output Torque = 0.11 Nm
Dimensions = 68 (Dia.) x 62.1 mm
Current Rating = 1.9 A
Length = 62.1mm
Fixing kit ; 363-6371 363-6371 is required for motors fitted with planetary gearheads. Brushless Motors with Speed Control. Variable speed brushless motor with integrated drive electronics e.g. speed control The integration of power amplifier ; speed loop circuitry within the motor greatly simplifies control Simply connect a speed control potentiometer and direction switch for bi-direction velocity control Digital output signal enables motor speed to be accurately monitored Smooth running due to its external rotor design IP 55 protection rating Can be fitted to a wide range of gearboxes/heads Ideal for many industrial ; scientific applications including conveyors, paper feeds, pumps, mixers
