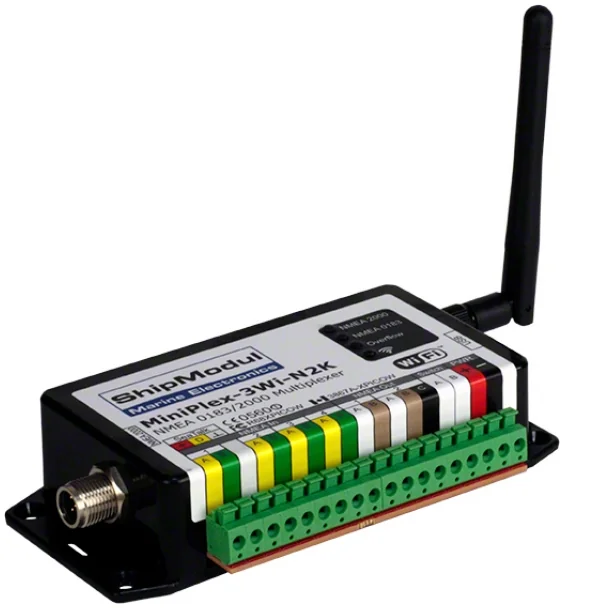

The MiniPlex-3Wi-N2K is an advanced multiplexer designed to integrate and manage data from various marine electronic devices, facilitating seamless communication across your vessel's navigation network. This device combines NMEA 0183 data from multiple sources into a unified stream and serves as a gateway between NMEA 0183 and NMEA 2000 networks. Additionally, it features a bidirectional SeaTalk interface, enabling conversion between SeaTalk data and NMEA 0183 sentences.
- NMEA 0183 Integration: Supports four NMEA 0183 inputs and two outputs, allowing flexible routing and filtering of data between devices.
- NMEA 2000 Gateway: Facilitates bidirectional communication between NMEA 0183 and NMEA 2000 networks, enabling seamless data exchange across different marine electronic systems.
- SeaTalk Compatibility: Input 1 can be configured as a bidirectional SeaTalk port, converting SeaTalk data to NMEA 0183 and vice versa, ensuring compatibility with Raymarine instruments.
- WiFi Connectivity: Functions as both an access point and client, allowing direct device connections or integration into existing WiFi networks.
- USB Interface: Provides a galvanically isolated USB port for connection to computers, facilitating data transfer and configuration.
- Advanced Data Routing and Filtering: Offers comprehensive routing and filtering capabilities, including sentence conversions and prioritization, to manage data flow effectively.
Technical Specifications:
- Supply Voltage: 8–35 V DC, protected against reverse polarity.
- Current Consumption: Approximately 70 mA (120 mA maximum with fully loaded talker ports).
- Computer Interfaces: WiFi (802.11 b/g/n, 2.4 GHz), supporting TCP/IP; USB, galvanically isolated.
- Inputs: 4 x NMEA 0183 (RS-422), galvanically isolated; Input 1 can be set to SeaTalk mode.
- Outputs: 2 x NMEA 0183 (RS-422), galvanically isolated; 1 x NMEA 2000 (M12 male Micro-C).
- Data Transmission Speeds: NMEA 0183 Inputs: 4800–57600 baud; NMEA 0183 Output 1: 4800–57600 baud; NMEA 0183 Output 2: 4800–115200 baud.
- Dimensions: 138 x 62 x 30 mm.
- Weight: Approximately 200 g.
Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
Compatibility Information:
- NMEA 0183 Devices: Compatible with a wide range of marine electronics supporting NMEA 0183 protocol.
- NMEA 2000 Devices: Compatible with devices adhering to NMEA 2000 standards.
- SeaTalk Devices: Compatible with Raymarine SeaTalk instruments when Input 1 is configured accordingly.
