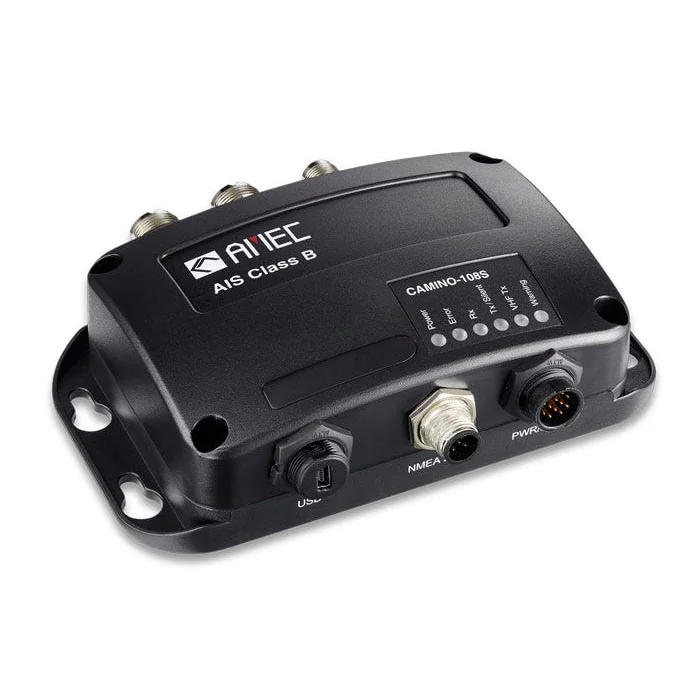

The AMEC Camino-108S is a compact and robust AIS Class B transponder designed to enhance maritime safety by providing precise vessel identification and collision avoidance capabilities. Its integrated antenna splitter allows for simplified installation, enabling the use of a single VHF antenna for both AIS and VHF radio communications.
- Integrated Antenna Splitter: Eliminates the need for a separate antenna, reducing installation complexity and minimizing power losses.
- Dual GPS Backup: Supports GPS input from both NMEA 2000 and NMEA 0183, ensuring continuous positioning and transmission of AIS data.
- Universal Connectivity: Offers NMEA 2000, NMEA 0183, and USB interfaces for seamless integration with various navigation systems.
- Built-in Self-Test Function: Provides diagnostics to alert users of potential antenna issues.
- Fail-Safe Operation: Ensures priority for VHF radio operation even if the splitter experiences a power failure.
Technical Specifications
- VHF Transceiver:
- AIS Transmit Frequency: 161.975 MHz (Channel 87B) and 162.025 MHz (Channel 88B)
- AIS Receive Frequency: 161.975 MHz (Channel 87B) and 162.025 MHz (Channel 88B)
- Channel Bandwidth: 25 KHz
- Modulation: GMSK / FM
- Data Rate: 9,600 bps
- Number of AIS Transmitters: 1
- Number of AIS Receivers: 2 (one time-shared between AIS and DSC)
- Number of DSC Receivers: 1 (time-shared between AIS and DSC)
- Transmit Power Output: 2 Watt (33 dBm ± 1.5 dB)
- Receive Sensitivity: < -107 dBm at 20% Packet Error Rate
- Supported AIS Message Formats: Class A & B
- DSC Receiver:
- Modulation: 1,300 Hz / 2,100 Hz FSK
- Data Rate: 1,200 bps ± 30 ppm
- Spurious Response Rejection: ≥ 70 dB for signal at -104 dBm; Bit Error Rate ≤ 1%
- Blocking: ≥ 84 dB for signal at -104 dBm; Bit Error Rate ≤ 1%
- GNSS Receiver (Integrated):
- Receiving Channels: 72
- Accuracy: Compliant with IEC 61108-1 standards
- Supported GNSS: GPS & GLONASS (factory default)
- Power Supply:
- Supply Voltage: 12V / 24V DC, 2A
- Power Consumption: Typically less than 3W average at 12V DC
- Environmental:
- Operating Temperature: -15°C to +55°C
- Waterproof Rating: IP54
- Physical Dimensions:
- Width: 157 mm (6.18 inches)
- Height: 47 mm (1.85 inches)
- Depth: 88 mm (3.46 inches) (excluding connectors)
- Weight: 306 g
Materials
The Camino-108S features a durable housing designed to withstand marine environments, ensuring longevity and reliable performance.
Compatibility Information
The Camino-108S is compatible with various navigation systems and devices, including chart plotters and PCs, through its NMEA 2000, NMEA 0183, and USB interfaces. It supports both GPS and GLONASS signals, providing flexibility in GNSS integration.
