The AMEC CAMINO-108 is a next-generation Class B AIS transponder designed to enhance maritime safety by facilitating data exchange between vessels equipped with AIS systems. This compact and robust device enables the transmission and reception of AIS data, which can be displayed on chart plotters or PCs, thereby improving collision avoidance capabilities.
- Dual-Channel Receivers: Monitor all AIS signals, including Class A, Class B, AtoN (Aids to Navigation), and SART (Search and Rescue Transponder).
- Connectivity Options: Supports NMEA 2000, NMEA 0183 (two ports), and waterproof USB ports for seamless integration with chart plotters and PCs.
- Data Logging: Equipped with an SD card slot for recording AIS data.
- Integrated GPS Receiver: Built-in high-sensitivity GPS receiver with an integrated antenna, providing precise vessel positioning.
- Low Power Consumption: Operates on 12/24V DC input with low power consumption.
- Compact Design: Optimized to be more compact and robust, occupying less than half the size of its previous generation.
Technical Specifications:
- AIS Transmitter: 1 channel
- AIS Receivers: 2 channels (AIS and DSC)
- Operating Frequencies: 156.025 ~ 162.025 MHz
- Channel Numbers: CH-1 (161.975 MHz), CH-2 (162.025 MHz)
- Message Formats: AIS Class A and B
- Power Supply: 12/24V DC
- Power Consumption: <3 Watts
- LED Indicators: Power, Error, AIS Receive, Transmit/Silent, SD Card
- External Connectors: GPS Antenna: TNC Female, VHF Antenna: Type M (PL 259) Female, NMEA 0183: 38400 (default), 9600, 4800 baud rates, NMEA 2000: Standard
- Ingress Protection: IPX2
The device features a robust and waterproof housing designed to withstand marine environments. The integrated GPS antenna is housed in a durable enclosure with an IP65 rating, ensuring resistance to water and dust ingress.
Compatibility Information:

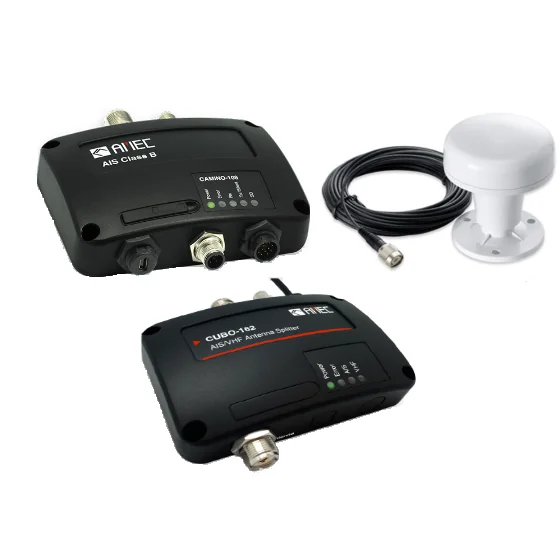

The CAMINO-108 is compatible with various chart plotters and PCs that support NMEA 2000, NMEA 0183, and USB interfaces. It is also compatible with optional accessories such as the GA-22 external GPS antenna and the CUBO-162 VHF-AIS-FM antenna splitter.
