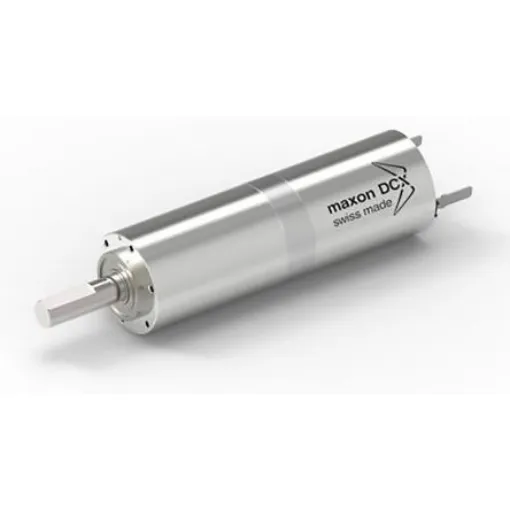

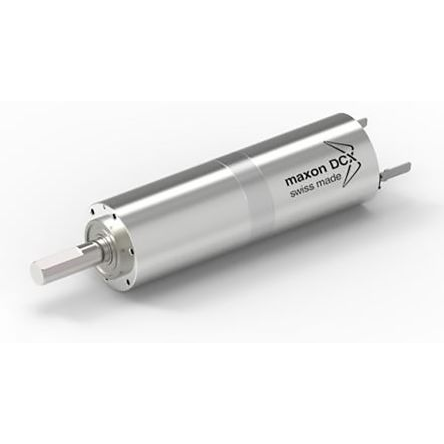

Maxon Brushed Geared DC Geared Motor, 24 W, 24 V dc, 3.3 Nm, 3.8 Nm, 97 rpm, 6mm Shaft Diameter - B75D3A7F22D2
High-performance Maxon brushed geared DC motor with 24W power and 97 rpm output.
Manufacturer part number: B75D3A7F22D2
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Supply Voltage = 24 V dc
DC Motor Type = Brushed Geared
Power Rating = 24 W
Output Speed = 97 rpm
Shaft Diameter = 6mm
Maximum Output Torque = 3.3 Nm, 3.8 Nm
Gearhead Type = Planetary
Gear Ratio = 103:1
Dimensions = 22 (Dia.) x 69.9 mm
Current Rating = 869 mA
Length = 69.9mm
Width = 22 Dia.mm
Series = DCX
Geared DC Motor 24V. The range of brushed DC geared motors at 24v have a planetary gearhead suitable for transeferring high torque. The motors are pre-loaded with ball bearings at the gearhead output. Suitable for high torque High speed input Low noise and low backlash Concentric gear input and output
