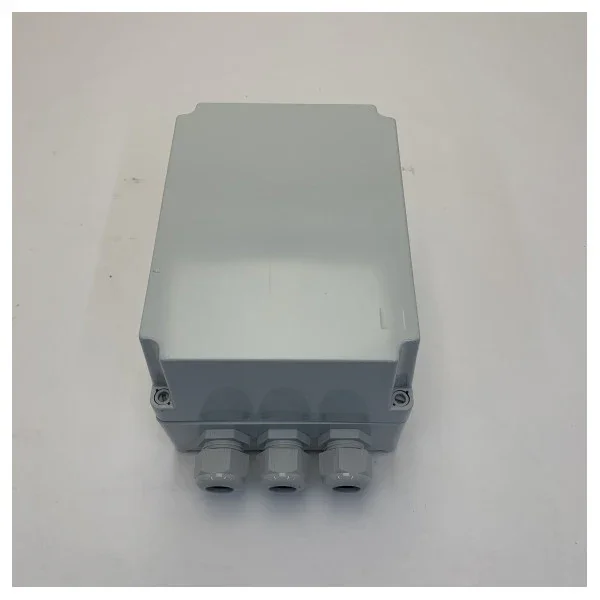

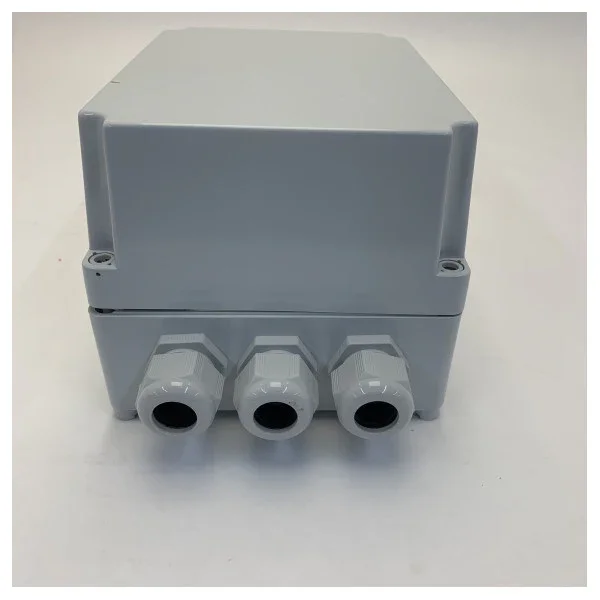

Mastervolt Masterswitch 7 kW 110V: Automatic Switching System for Marine Applications
The Mastervolt Masterswitch 7 kW 110V (article number 55106100) is the essential switching point in your marine power system. This automatic switching system ensures that your equipment on board is always powered, by seamlessly switching between two AC power sources, such as shore power and a generator or inverter. This prevents harmful contact between different 110 V sources and ensures the safety and longevity of your expensive equipment. With a compact design and robust construction, this Masterswitch is the simple and effective solution for reliable power management at sea.
Key Features and Benefits
- Automatic and Safe Switching: The Masterswitch automatically selects the available power source. This prevents parallel connection and damage to your inverter or other components.
- Dual AC Input: Suitable for two AC inputs, for example, the electricity grid (shore power) and a generator or inverter, with a single output to the AC power group.
- Adjustable Generator Delay: Features an adjustable delay time for the generator input of 0 to 10 seconds, ensuring a controlled startup and switching.
- Fast Switching Time: The switching time is 12-22 ms on activation and 4-19 ms on deactivation, guaranteeing a fast and virtually uninterrupted power supply.
- High Power: The unit has a nominal input voltage of 120 V (50/60 Hz) and an input voltage range of 100-125 V.
- MasterBus Compatible: Can be integrated into a MasterBus system for central energy management and monitoring.
- High Protection Rating: With a protection rating of IP55, the device is well protected against dust and water jets, making it ideal for the marine environment.
Specifications Masterswitch 7 kW 110V
This model is designed for use in 110/120V systems and offers the following technical details:
- Model: Masterswitch 7 kW (120 V)

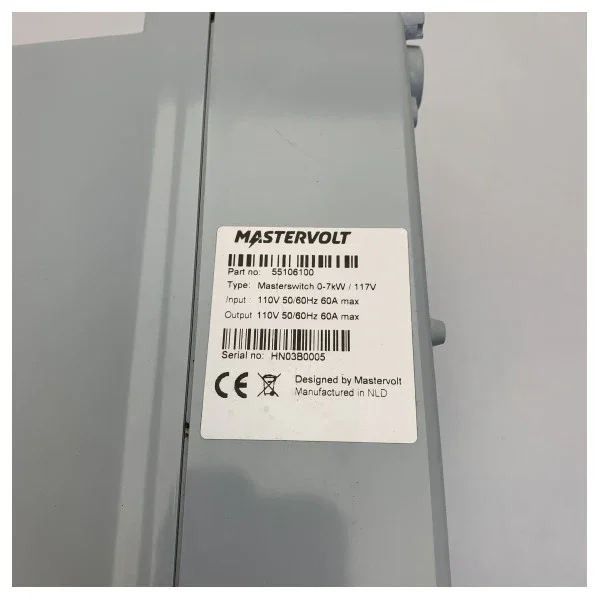

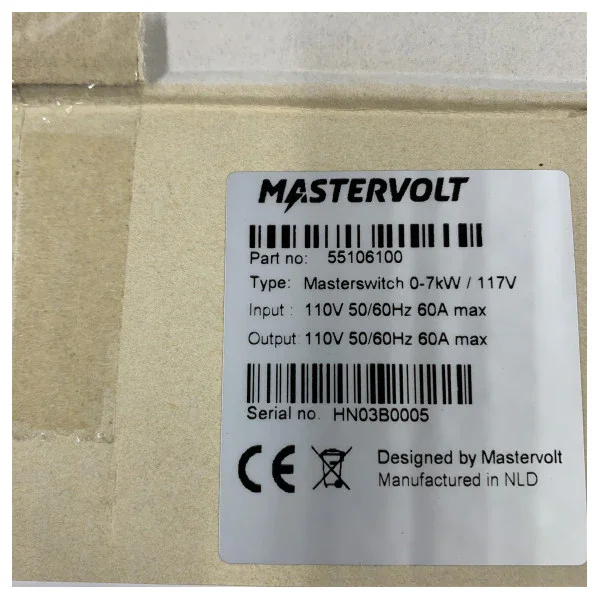

- Article Number: 55106100
- Nominal Input Voltage: 120 V (50/60 Hz)
- Input Voltage Range: 100-125 V
- Number of Inputs: 2
- Number of Outputs: 1
- Switching Time (On/Off): 12-22 ms / 4-19 ms
- Power Consumption (AC all inputs): 7 W
- Nominal Current Generator Output: 60 A
- Cable Size: 0.5-10 mm²/AWG 20-7
- Dimensions (hxbxd): 200 x 154 x 148 mm (7.9 x 6.1 x 5.8 inch)
- Weight: 2.5 kg (5.5 lb)
- Protection Rating: IP55
- Temperature Range (Specified): -5 °C to 60 °C
The Mastervolt Masterswitch is the reliable solution to perfectly manage your power supply on board, providing the safety and comfort you need.
