Martindale TEK 101 Non Contact Voltage Detector, 180V ac to 600V ac - TEK101
Easily detect voltages from 180V to 600V AC with the Martindale TEK 101, featuring audible alerts and a compact design.
Manufacturer part number: TEK101
Indicator Type = Voltage
Battery Type = 9V
Audible Tone = Yes
ATEX Approval = No
Power Source = Battery
Safety Category = CAT IV 1000 V
Weight = 120g
Height = 25mm
Length = 202mm
Maximum Detection Voltage = 600V ac
Minimum Detection Voltage = 180V ac
Width = 36mm

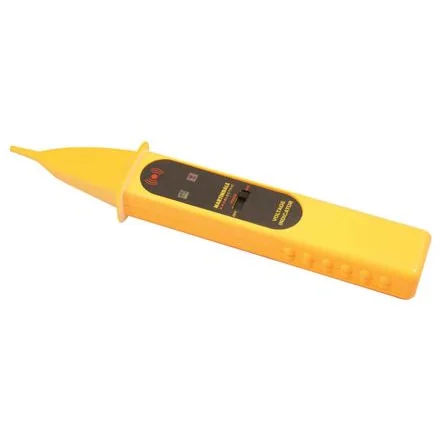

Martindale Non Contact Voltage Detector MARTEK101. Martindale TEK101 is a simple-to-use non-contact voltage indicator with audible and visual warnings and an extended probe tip for access to confined spaces. It is optimised for identifying energised conductors at voltages within the range 180 V to 600 V AC. Features include a unique built-in 50 Hz proving unit which tests the sensor operation, battery and LED. This unit proves the entire circuit is fully functional, avoiding the need for a separate proving unit. The tip design and optimised sensitivity make it possible to discriminate between adjacent live conductors. The high resolution capability of the TEK101 improves safety and saves time on-site. The pocket sized design conforms to CAT IV 1000 V safety regulations.
