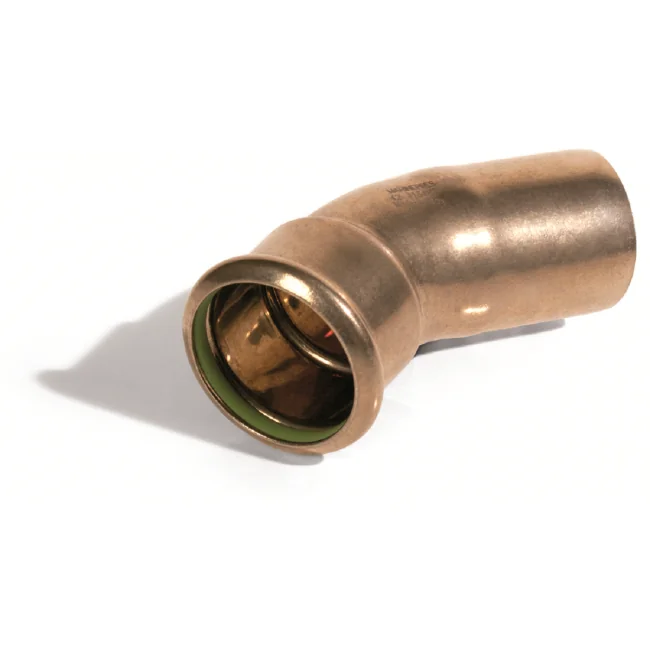

The MarinePRES 45° Copper Elbow Fitting (Male/Female) is a high-quality coupling designed for marine applications, offering exceptional resistance to corrosion. Ideal for installations exposed to hydrocarbon-based fuels, fire-fighting systems, and saline or corrosive environments, this fitting ensures durability and reliability.
- Corrosion Resistance: Specifically engineered to withstand harsh marine conditions, providing longevity and performance.
- High-Temperature and Pressure Tolerance: Equipped with a green FKM O-ring capable of operating within a temperature range of -20°C to +220°C and a maximum pressure of 16 bars.
- Certifications: Complies with industry standards, including RINA, Lloyd's Register, Bureau Veritas, and ABS.
Technical Specifications
- Material: Copper
- O-Ring Material: FKM (Fluorocarbon Rubber)
- Temperature Range: -20°C to +220°C
- Maximum Pressure: 16 bars
- Angle: 45°
- Connection Type: Male/Female
Materials
- Fitting Body: Copper
- O-Ring: Green FKM
Compatibility Information
- Brackish water systems
- Charged and wastewater systems
- Heating systems
- Air conditioning systems
- Solar thermal systems
- Compressed air systems
- Fire protection systems
- Water treatment systems
