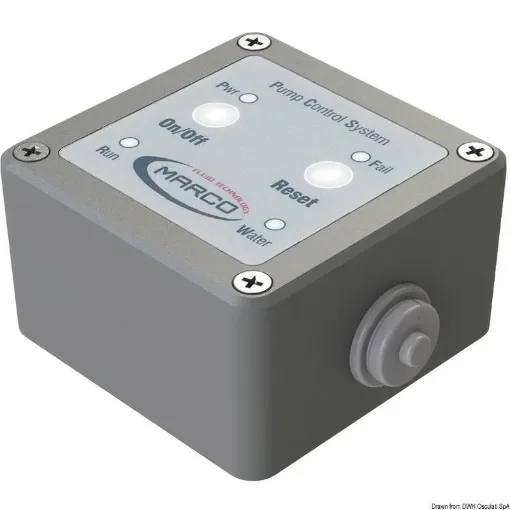

The PCS Control Panel is designed for remote monitoring and operation of Marco electronic pumps, particularly in autoclave systems. It enables users to oversee pump status, manage liquid transfer, and address operational issues without direct intervention.
- Remote Monitoring: Displays pump status and liquid transfer progress.
- Alarm Reset: Allows resetting of alarms due to liquid depletion or overload without powering down the system.
- Simple Operation: Enables pump activation and deactivation with a single button press.
- Flexible Mounting: Can be mounted or recessed in a 70 mm diameter circular hole, or externally using the provided square box with two screws.
- External Control Integration: Features a terminal block to replicate panel buttons and LEDs for integration with external circuits or third-party devices.
Technical Specifications:
- Voltage: 12/24 Volt DC
- Connector: RJ11
- Bore Diameter: 70 mm
- Ingress Protection (IP) Rating: IP65
- Dimensions: 80 x 80 x 46 mm
The control panel is constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
Compatibility Information:
The PCS Control Panel is compatible with Marco electronic pumps operating at 12/24 Volt DC, including models like the UP3E 15 L/min Electronic 12/24 Volt DC autoclave.
Additional Details:
- Alarm Indicators: The panel includes LEDs to indicate various operational statuses, such as pump running, tank empty, and alarm conditions.
- External Control Capability: The terminal block allows for the replication of panel functions on external circuits, facilitating integration with other systems.
