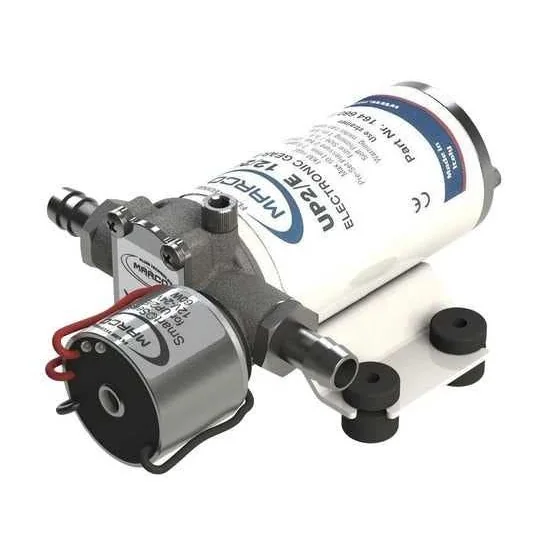

The Marco Automatic Electronic Control Autoclave Pumps are self-priming, automatic electric pumps designed for fresh and saltwater applications, including boats, rubber dinghies, sailing boats, and campers. These pumps feature electronic control systems that adjust motor speed proportionally to water demand, ensuring smooth operation and energy efficiency.
- Self-Priming Capability: Ensures reliable operation without the need for manual priming.
- Electronic Control System: Adjusts motor speed based on water demand, reducing noise and optimizing energy consumption.
- Integrated Check Valve: Prevents backflow, maintaining consistent water pressure.
- Universal Voltage Compatibility: Operates on both 12V and 24V systems.
- LED Indicators: Green LED indicates pump operation; blue LED signals an empty tank.
- Protection Mechanisms: Includes safeguards against short circuits, overloads, and dry running.
Technical Specifications:
- Voltage: 12/24V DC
- Flow Rate: Varies by model (e.g., UP2/E: 10 l/min; UP3/E: 15 l/min; UP12/E: 36 l/min)
- Pressure: Up to 3.5 bar, depending on the model
- Self-Priming Capability: Up to 3 meters
- Ports: Typically 3/8" BSP or 1/2" BSP, depending on the model
- Motor Power: Varies by model (e.g., UP2/E: 90W; UP3/E: 150W; UP12/E: 360W)
- Protection Rating: IP67
Materials:
- Pump Body: Nickel-plated brass
- Impeller: Helical PTFE gears
- Shaft: Stainless steel
- Seals and O-Rings: FKM seals and NBR O-rings
Dimensions and Weight:
- UP2/E: Height: 164 mm, Length: 116 mm, Width: 81 mm, Weight: 1.3 kg
- UP3/E: Height: 189 mm, Length: 186 mm, Width: 101 mm, Weight: 2 kg
- UP12/E: Height: 258 mm, Length: 221 mm, Width: 113 mm, Weight: 4.9 kg
Compatibility Information: These pumps are suitable for fresh and saltwater applications, including boats, rubber dinghies, sailing boats, campers, trailers, mobile homes, construction machinery, agriculture, industry, and households. They are designed to handle water temperatures up to 85°C.
