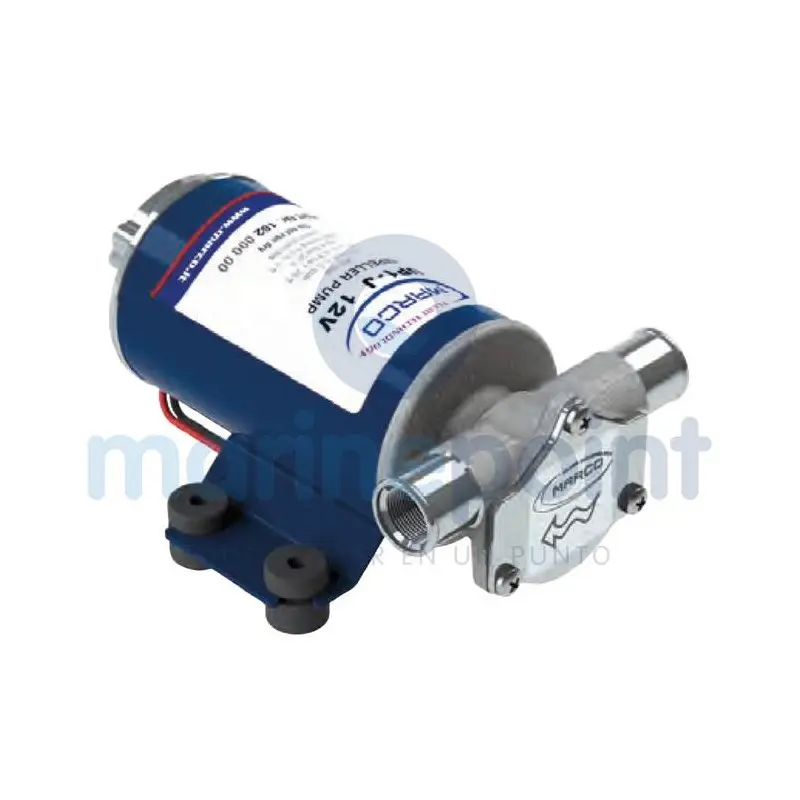

Trust the robustness and efficiency of this electric bilge pump, designed to deliver reliable performance in demanding nautical applications.
Technical Features
- Operating voltage: 12V DC
- Flow rate: 35 litres per minute
- Self-priming: up to 1.5 m
- Body material: OT58 Brass
- Impeller: Special elastomer (flexible)
- Shaft: Stainless steel AISI-316
- Motor: Permanent magnets, brush holder with EMI filter
- Approximate dimensions: 176 x 120 x 94 mm
Advantages
- Marine durability: Made with corrosion-resistant materials, ideal for nautical environments.
- Self-priming: Operates up to 1.5 metres of suction height.
- Versatility: Suitable both as a bilge pump and for deck washing or fresh water circulation.
- Compatibility: Replaces similar models in the Marco UP1 range (confirm compatibility according to reference GS20160).
Recommended Applications
- Bilge pumping
- Deck wash systems
- Fresh water circulation and transfer
Materials and Quality
OT58 brass and stainless steel AISI-316 shaft, both materials widely recognized for excellent resistance to corrosion and salt spray. The flexible special elastomer impeller ensures smooth operation even with small particles in the water.
Installation and Maintenance Tips
- Check polarity and voltage before installation.
- Install the pump in an easily accessible location to facilitate future maintenance operations.
- Do not use for transferring fuels such as gasoline.
- Clean and inspect the impeller periodically to ensure maximum performance.
Specifications Table
| Reference | GS20160 |
|---|
| Brand | Marco |
|---|
| Voltage | 12V DC |
|---|
| Maximum Flow Rate | 35 l/min |
|---|
| Suction Height | 1.5 m |
|---|
| Body Material | OT58 Brass |
|---|
| Impeller | Flexible Elastomer |
|---|
| Shaft | Stainless AISI-316 |
|---|
